For the application of the blender machine, the whole machine program uses MCU (SC32F5832) + IPM (SDM15G60FB). The whole machine scheme is compatible with high speed FOC single resistance control without or with Hall. The scheme with Hall can be adapted to various motors of different manufacturers, which is convenient for debugging. The sensorless scheme reduces the overall cost of electronic control, and has the advantages of fast start-up speed and strong load capacity.


Topology

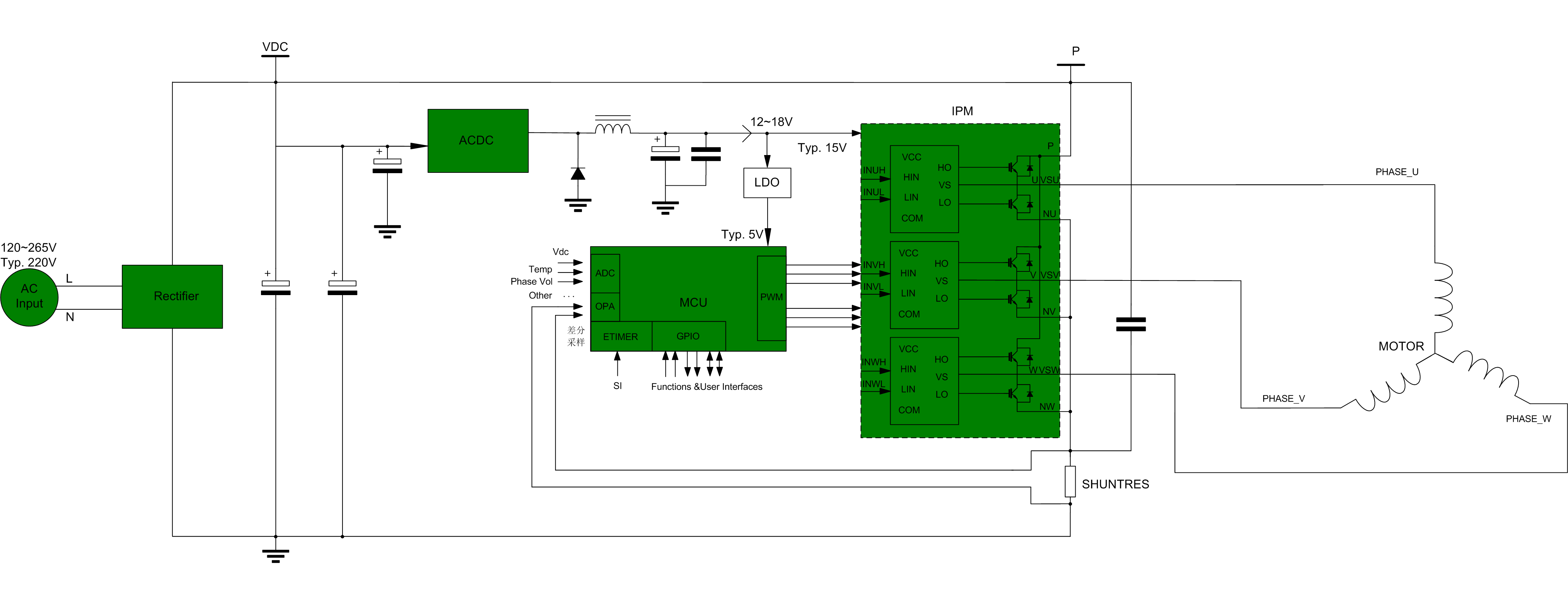

The main hardware topology diagram of the wall breaker scheme is as follows:


Product
Topological classification product category Typical product model Typical package product description
IPM IPM SDM15G60FB DIP-24HL 600V/15A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
MCU IC MCU IC SC32F5832(64) LQFP-64-10×10-0.5 Cortex-M0 MCU With enhanced PWM and ADC
IPM IPM SDM10C60FB2 DIP-25B 600V/10A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
IPM IPM SDM30G60FB DIP-24HL 600V/30A 3-PHASE FULL-BRIDGE DRIVER (INTELLIGENT POWER MODULE)
