    The SLP74AHCT86 is high-speed CMOS devices.

    This device is quadruple 2-input-exclusive-OR gates and performs the Boolean function Y = AB(_)A(_)B.

Main feature


  • Balanced propagation delays

  • All inputs have a Schmitt-trigger action

  • Compatible with TTL input levels

  • ESD protection:

  •  HBM exceeds 2000V

  •  CDM exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74AHCT86EB SOP-14-225-1.27 AHCT86 Halogen free Tube
SLP74AHCT86EBTR SOP-14-225-1.27 AHCT86 Halogen free Tape & Reel
Block Diagram

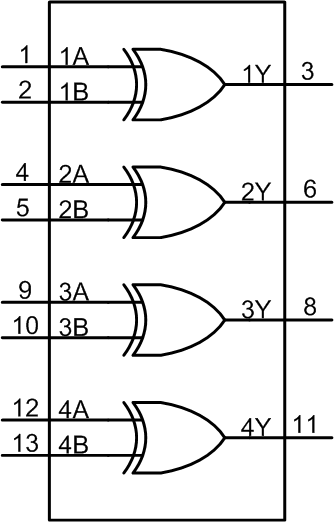

                      Fig.1 Function diagram

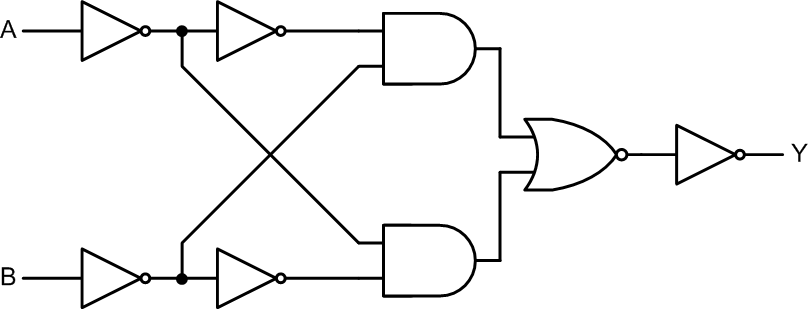

               Fig.2 Logic diagram(one gate)
