Inverter refrigerator compressor (High voltage)

The SC32F5632 (64) and SC32F5832 (64) series are high-performance MCUs specially developed for motor control and digital power supply. Using ARM Cortex-M0 core and built-in coproc coprocessor can effectively accelerate the motor vector control operation. The 12-bit precision multi-channel ADC converter and the built-in high-performance operational amplifier can control the current accurately and obtain higher cost performance. UART, SPI and other communication methods can realize the information exchange and real-time information acquisition between MCU and the main control panel, which is very suitable for the development of inverter control system of refrigerator.

Topology

Household refrigerators and commercial inverter refrigerators (excluding car refrigerators) have two typical topologies, including:

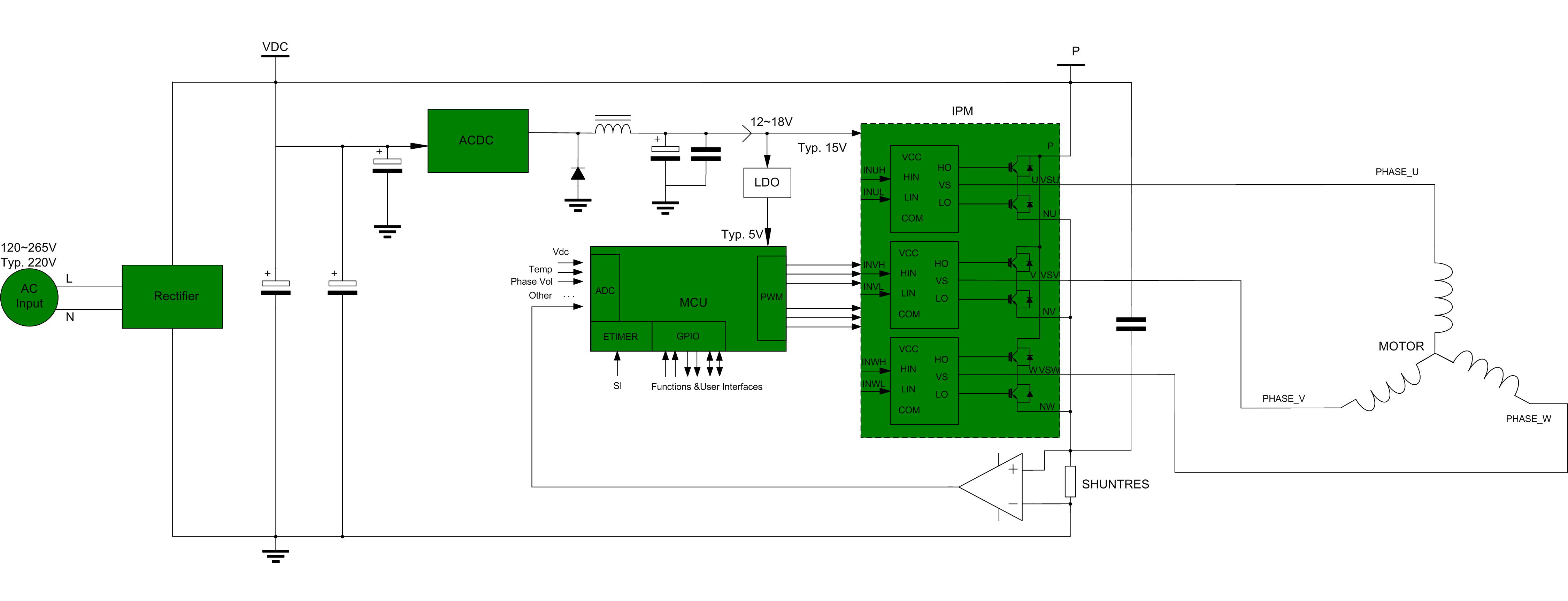

1.IPM scheme (main power uses IPM products)


IPM 方案.png

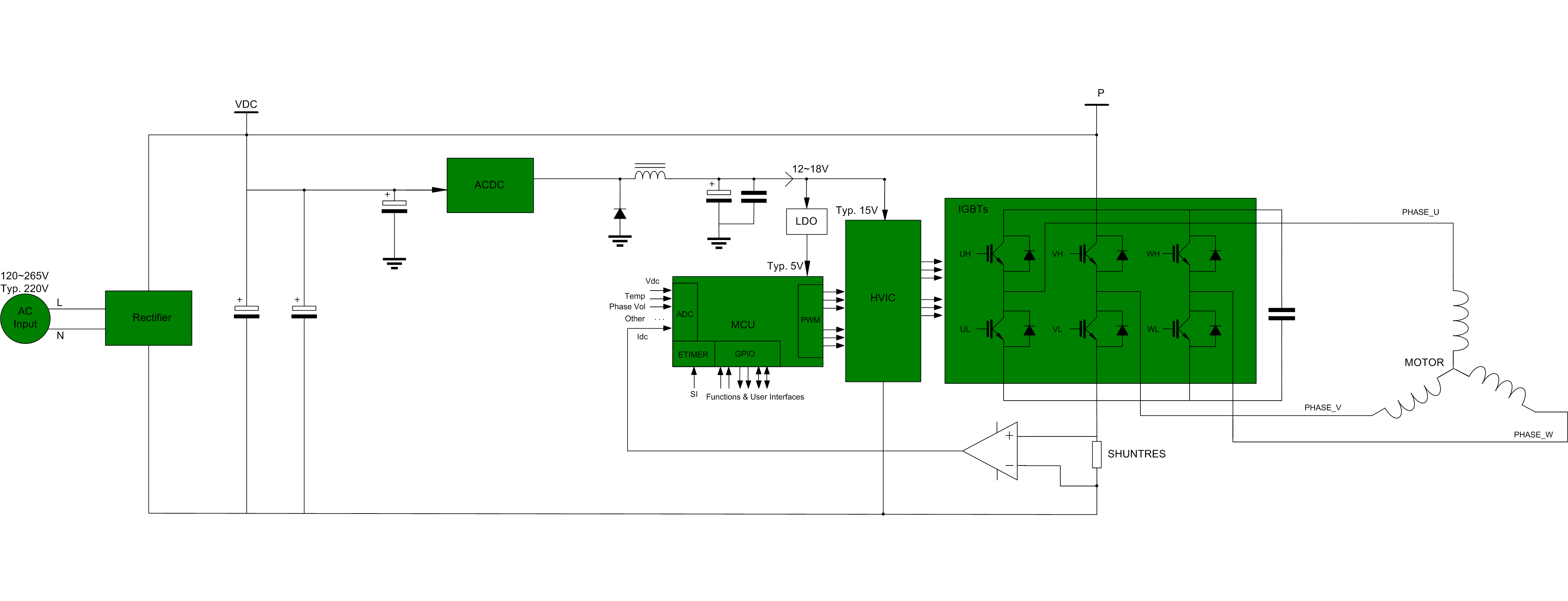

2. Discrete scheme (main power adopts IGBT products and supporting HVIC drive module)



Product
Topological classification product category Typical product model Typical package product description
MCU IC MCU IC SC32F5632(64) LQFP-32-7×7-0.8 Cortex-M0 MCU with enhanced PWM and ADC
MCU IC MCU IC SC32F5864 LQFP-64-10×10-0.5 Cortex-M0 MCU With enhanced PWM and ADC
Application&Information
title Types of Size (KB) date Download the latest Chinese version
SDH2106U_Datasheet PDF 341 2020-04-03 SDH2106U_Datasheet_1.0
SDH2136_Datasheet PDF 414 2020-04-03 SDH2136_Datasheet_1.2
SDH8322S_ Datasheet PDF 315 2020-04-03 SDH8322S_ Datasheet_1
SilanPro_User Manual PDF 3072 2020-04-03 SilanPro_User Manual_1.3
SDM06C60FB2_Datasheet PDF 500 2019-12-16 SDM06C60FB2_Datasheet_1.1
SilanPro_User Manual PDF 3072 2019-12-16 SilanPro_User Manual_1.3
