The electric tricycle scheme adopts vector control and related depth extension control for BLDCM or PMSM.It has the advantages of high comfort, high efficiency, small volume and high reliability.


Topology

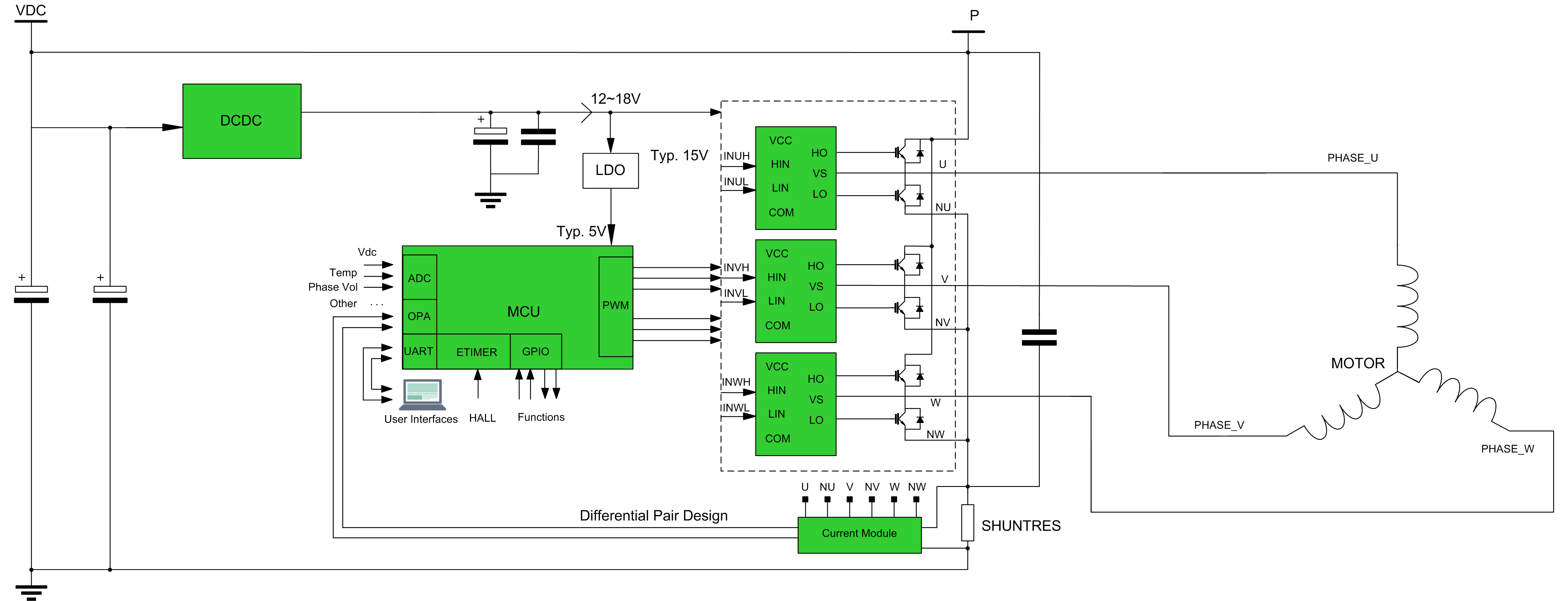

The main hardware topology diagram of the electric tricycle scheme is as follows:



Product
Topological classification product category Typical product model Typical package product description
Gate Driver IC Gate Driver IC SDH21263 SOP-8-225-1.27 225V HIGH VOLTAGE HALF BRIDGE DRIVER
DC-DC Converter DC-DC Converter SD4938 SOP-8-225-1.27 150V CURRENT MODE PWM CONTROLLER
MCU IC MCU IC SC32F5832(64) LQFP-64-10×10-0.5 Cortex-M0 MCU With enhanced PWM and ADC
Application&Information
title Types of Size (KB) date Download the latest Chinese version
SilanPro_Precautions for Use PDF 658 2020-04-02 SilanPro_Precautions for Use
SilanPro_ User Manual _1.3 PDF 3072 2020-04-02 SilanPro_ User Manual _1.3
