     The SLP74LVC2G08 is a dual 2-input And Gate. The device is designed for 1.65V to 5.5V Vcc operation and performs the function Y=A∙B. The device is specially designed for protect performance during power down using Power-Down-Protect circuit. The Power-Down-Protect circuitry disables the output drivers, preventing the damaging outside current back through the device when it is powered down.

Main feature


  •  5V tolerant inputs for interlacing with 5V logic

  •  Wide supply voltage range from 1.65V to 5.5V

  •  CMOS low power consumption

  •  Direct interface with TTL levels

  •  ±24mA output driver (Vcc=3.0V)

  •  ESD protection:

  •   HBM exceeds 2000V

  •   CDM exceeds 1000V

  •  Latch up performance exceeds 250mA

  •  Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC2G08JWTR VSSOP-8-100-0.5 2G08 Halogen free Tape & Reel
SLP74LVC2G08JW VSSOP-8-100-0.5 2G08 Halogen free Tube
Block Diagram

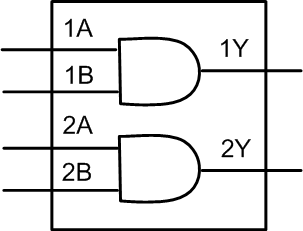

              Fig.1 Function diagram

                     Fig.2 Logic diagram
