SDM02M50DBE/DBS is a 3-phase brushless DC motor driver IC with highly-integrated and high reliability, using for small power motor drive applications such as fan motor, consisting of built-in 6 fast recovery MOSFET and 3 half-bridge HVIC for gate driving.

SDM02M50DBE/DBS integrates under-voltage protection circuit, providing perfect protection and fail-safe operation. Each phase current of inverter can be monitored separately due to divided negative dc terminals.

SDM02M50DBE/DBS is designed with good insulation, perfect thermal properties and low EMI. It is compact and suitable for built-in motors or any other applications requiring the compact installation.

Main feature
  • Built-in 500V/2A fast recovery MOSFET

  • Built-in high-voltage Gate driver circuit(HVIC)

  • Built-in under-voltage protection

  • Built-in bootstrap diode

  • Compliant with 3.3V and 5V MCU interface, active high

  • 3 independent negative DC-link terminals for inverter current sensing

  • Optimal adapted for low EMI

  • Insulation class: 1500Vrms/min

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM02M50DBE DIP-23E SDM02M50DBE Pb free Tube
SDM02M50DBS SOP-23H SDM02M50DBS Pb free Tube
SDM02M50DBSTR SOP-23H SDM02M50DBS Pb free Tape&Reel

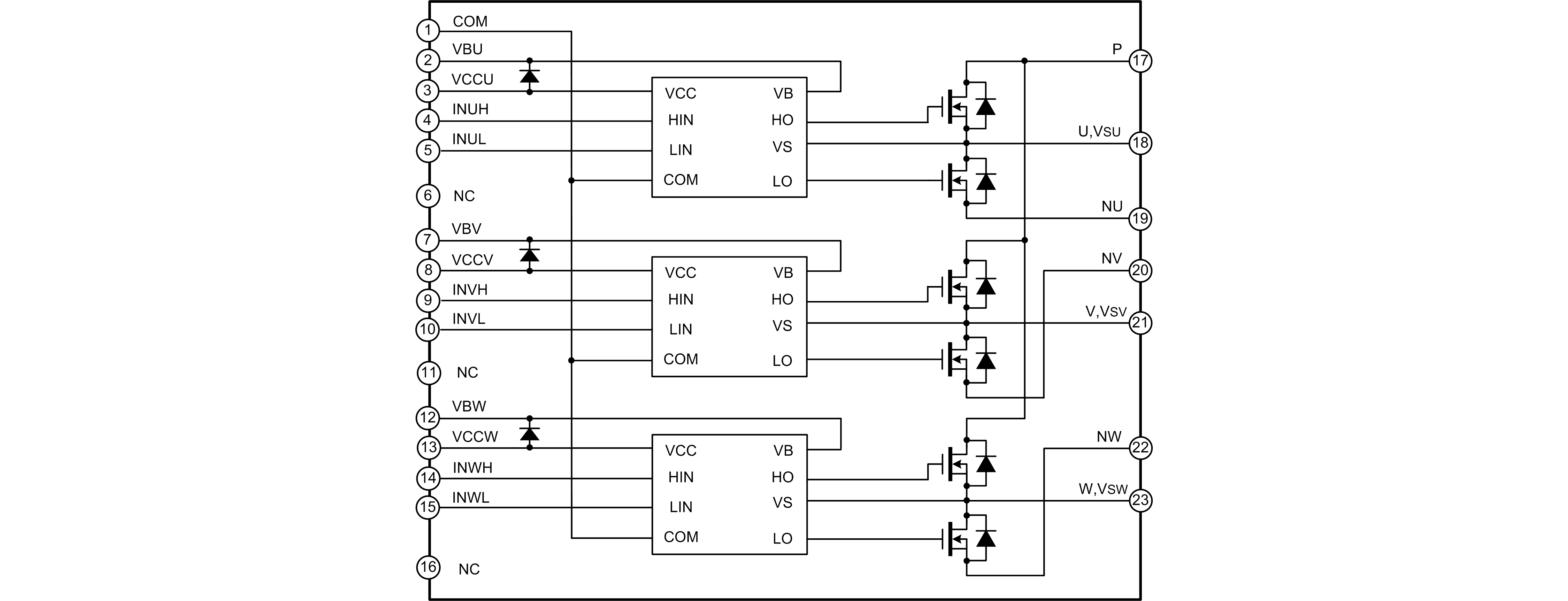

Block Diagram

SDM02M50DBE(DBS) .png

title Types of Size (KB) date Download the latest English version
SDM02M50DBE/DBS PDF 200 2021-05-19 SDM02M50DBE/DBS Datasheet
