The SLP74LVC14A hex Schmitt-trigger inverter is designed for 1.65-V to 3.6-V VCC operation.

The inputs switch at different points for positive and negative-going signals. The difference between the positive voltage VT+ and the negative voltage VT- is defined as the input hysteresis voltage VH.

Inputs can be driven from either 3.3V or 5V devices. This feature allows  the use of this device as a translator in mixed 3.3-V and 5-V system environment.


Main feature

Inputs accept voltages up to 5.5V

Operate from 1.2V to 3.6V

Direct interface with TTL levels

CMOS low power consumption

ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

Latch-up performance exceeds 100mA

Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC14AEB SOP-14-225-1.27 74LVC14A Halogen free Tube
SLP74LVC14AEBTR SOP-14-225-1.27 74LVC14A Halogen free Tape & Reel
SLP74LVC14AJY TSSOP-14-225-0.65 LVC14A Halogen free Tube
SLP74LVC14AJYTR TSSOP-14-225-0.65 LVC14A Halogen free Tape & Reel

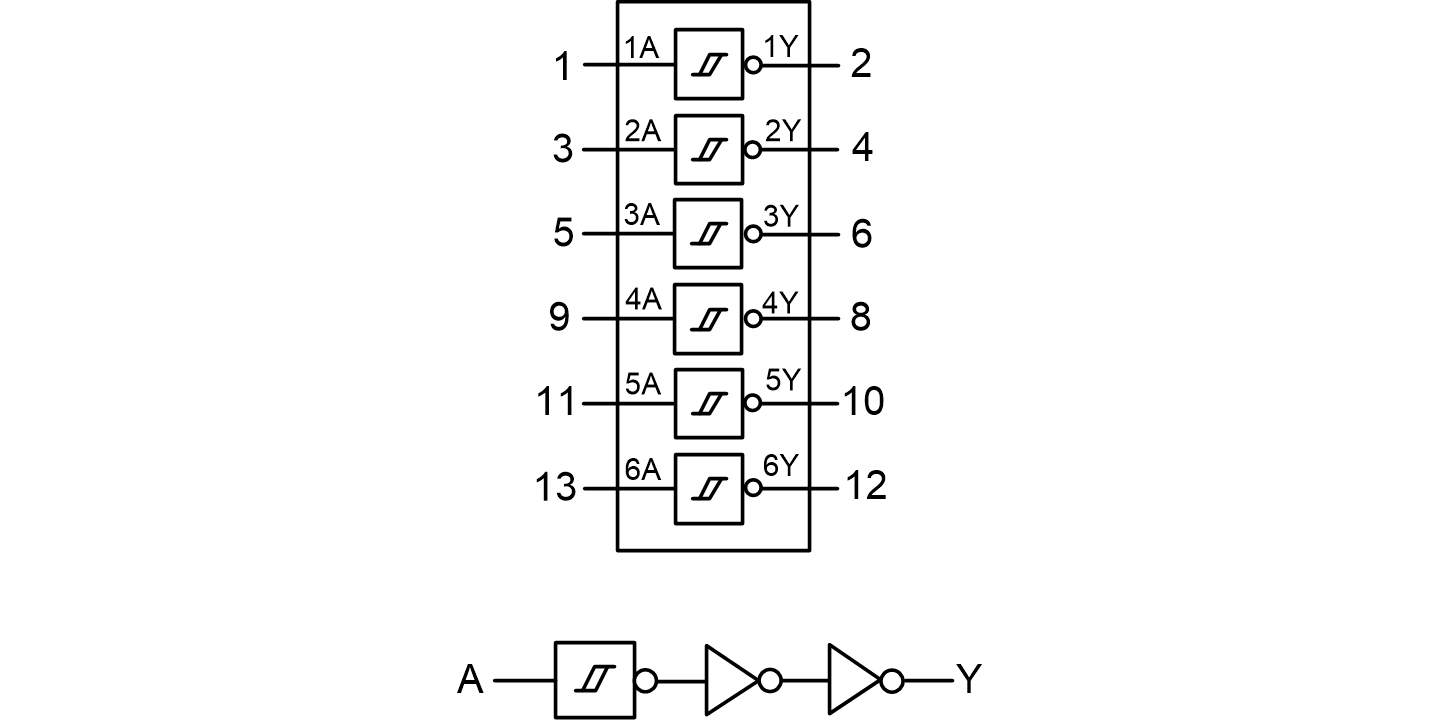

Block Diagram



Documents
title Types of Size (KB) date Download the latest English version
SLP74LVC14A PDF 126 2022-03-25 SLP74LVC14A Datasheet
