The SLP74LVC32A devices are quadruple 2-input OR gates.

Inputs can be driven from either 3.3V or 5V devices. This feature allows the use of these devices as translators in mixed 3.3V and 5V system environment.

Main feature

Inputs accept Voltages to 5V

Operate from 1.2V to 3.6V

CMOS low power consumption

Direct interface with TTL levels

ESD protection:

  • HBM exceeds 2000V

  • CDM exceeds 1000V

Latch-up performance exceeds 250mA

Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC32AJY TSSOP-14-225-0.65 LVC32A Halogen free Tube
SLP74LVC32AJYTR TSSOP-14-225-0.65 LVC32A Halogen free Tape & Reel

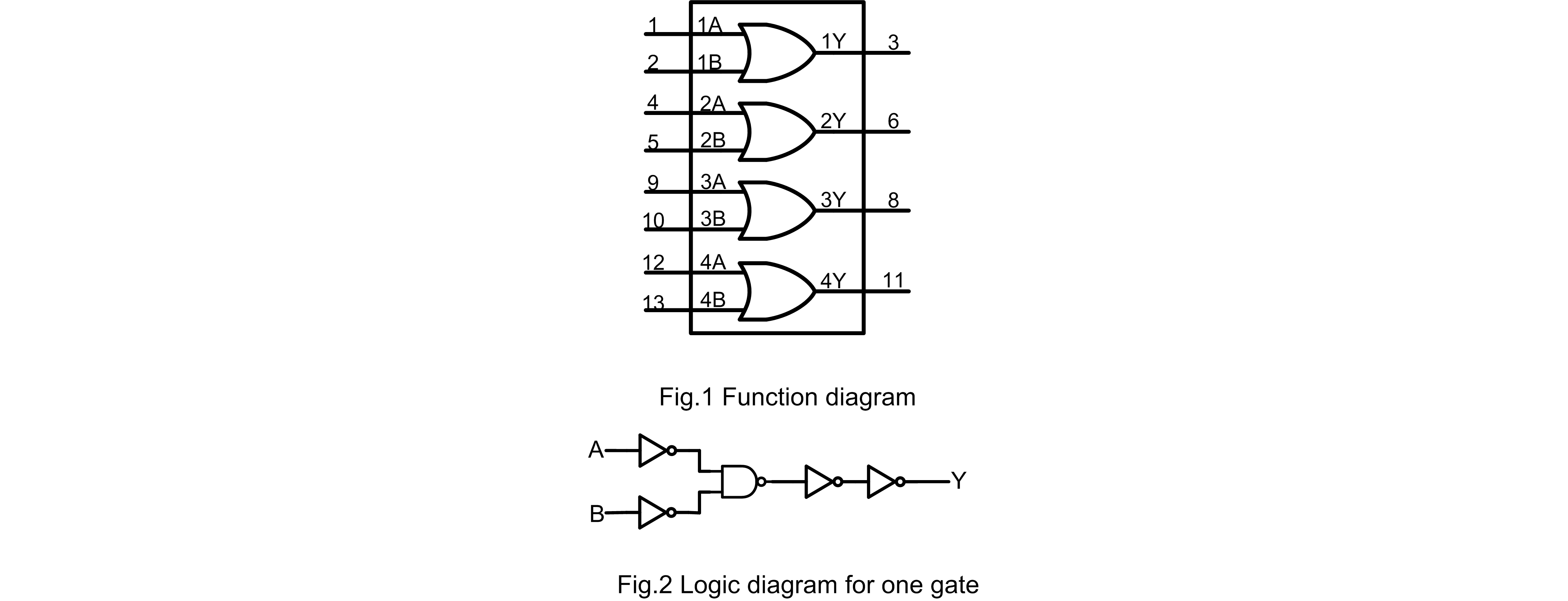

Block Diagram

SLP74LVC32A 英文.png

title Types of Size (KB) date Download the latest English version
SLP74LVC32A PDF 109 2022-04-24 SLP74LVC32A Datasheet
