The scheme of "MCU + IPM"

For the application of onboard DC fans, the whole machine scheme uses MCU (SC32F5632, SC32F5664) + IPM (SD02M60DAS). The scheme is compatible with three resistance or single resistance current sampling. The motor can achieve reliable and rapid closed-loop start under the improved sensorless algorithm, and can also start under the conditions of downwind and upwind. Control methods such as open-loop control, constant speed control, constant power control and constant air flow control can be selected, and the control modes can be switched.Off-line parameters can be compatible with various motor parameters and meet the needs of different applications, which can provide customers with highly competitive solutions.


Topology

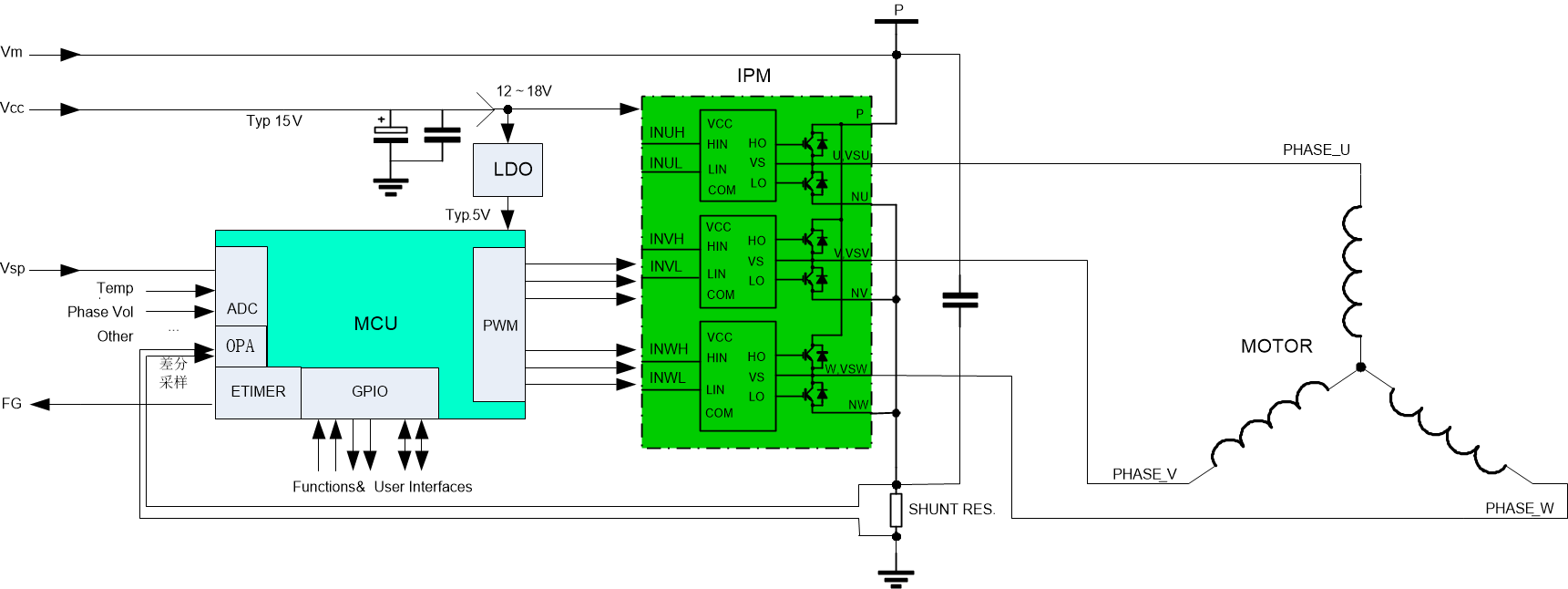

The fan hardware scheme of MCU+IPM is as follows.


Product
Topological classification product category Typical product model Typical package product description
MCU IC MCU IC SC32F5632(64) LQFP-32-7×7-0.8 Cortex-M0 MCU with enhanced PWM and ADC
