The SA3525 is a monolithic integrated PWM control chip with excellent performance, complete function and versatility, it is simple, reliable, and easy to use, its push-pull output increases the drive capacity; It contains under-voltage lockout circuit, soft startup control circuit, and PWM latch, has overcurrent protection, features adjustable frequency and limitable maximum duty cycle.

Main feature
  • Wide operating voltage range: 8-35V

  • Built-in 5.1 V±1.0% reference voltage source

  • Operating frequency range of internal oscillator: 100Hz-400kHz

  • External synchronization of oscillator

  • Adjustable dead time

  • Push-pull end stage with maximum current of 400mA

  • Internal undervoltage lockout circuit

  • Internal soft startup circuit

  • Internal PWM (pulse width modulation)


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SA3525DC DIP-16-300-2.54 SA3525DC Halogen free Tube
SA3525SC SOP-16-225-1.27 SA3525SC Halogen free Tube
SA3525SCTR SOP-16-225-1.27 SA3525SC Halogen free Tape & Reel

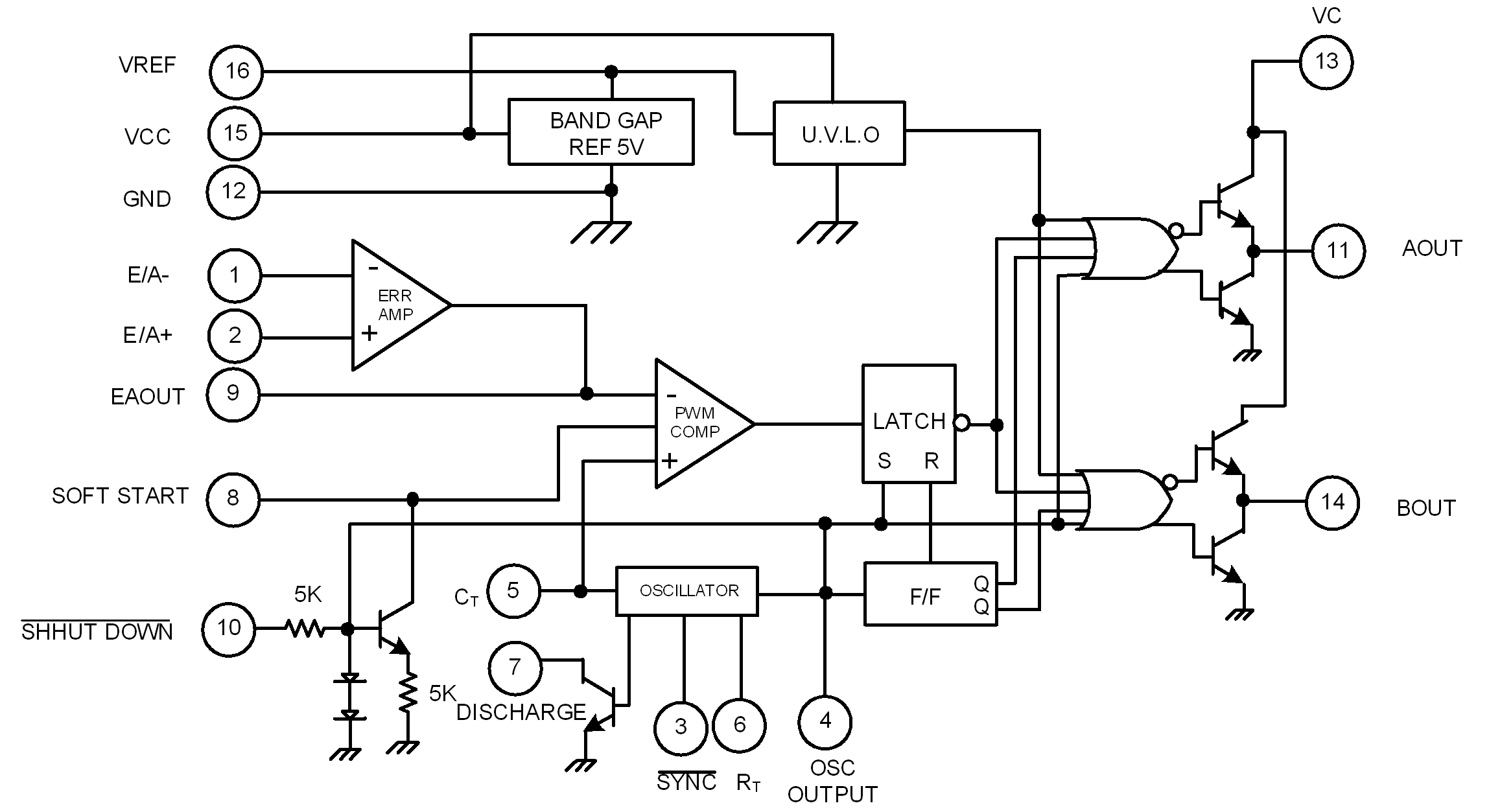

Block Diagram
