The SLP74LVC1G08 is designed for 1.65V to 5.5V VCC operation, performs the Boolean function Y=A • B.

Inputs can be driven from either 3.3V or 5V devices. This feature allow the use of this device in a mixed 3.3V and 5V system environment.

Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing damaging backflow current through the device when it is powered down.

Main feature
  • Supports 1.65V to 5.5V VCC operation

  • ±24mA output drive at VCC=3.0V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • Input accept voltages up to 5V

  • ESD protection:

    HBM Exceeds 2000V

    CDM Exceeds 1000V

  • Latch-up performance exceeds 100mA

  • Specified from -40°C to +85°C and -40°C to +125°C

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVC1G08KM SOT-353-5L SM Halogen free Tube
SLP74LVC1G08KMTR SOT-353-5L SM Halogen free Tape & Reel
SLP74LVC1G08KB SOT-23-5L VG08 Halogen free Tube
SLP74LVC1G08KBTR SOT-23-5L VG08 Halogen free Tape & Reel

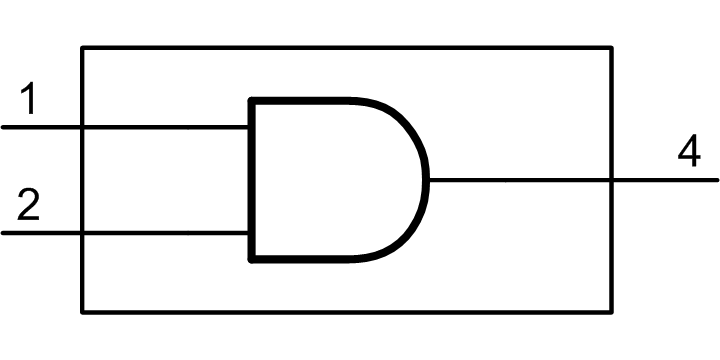

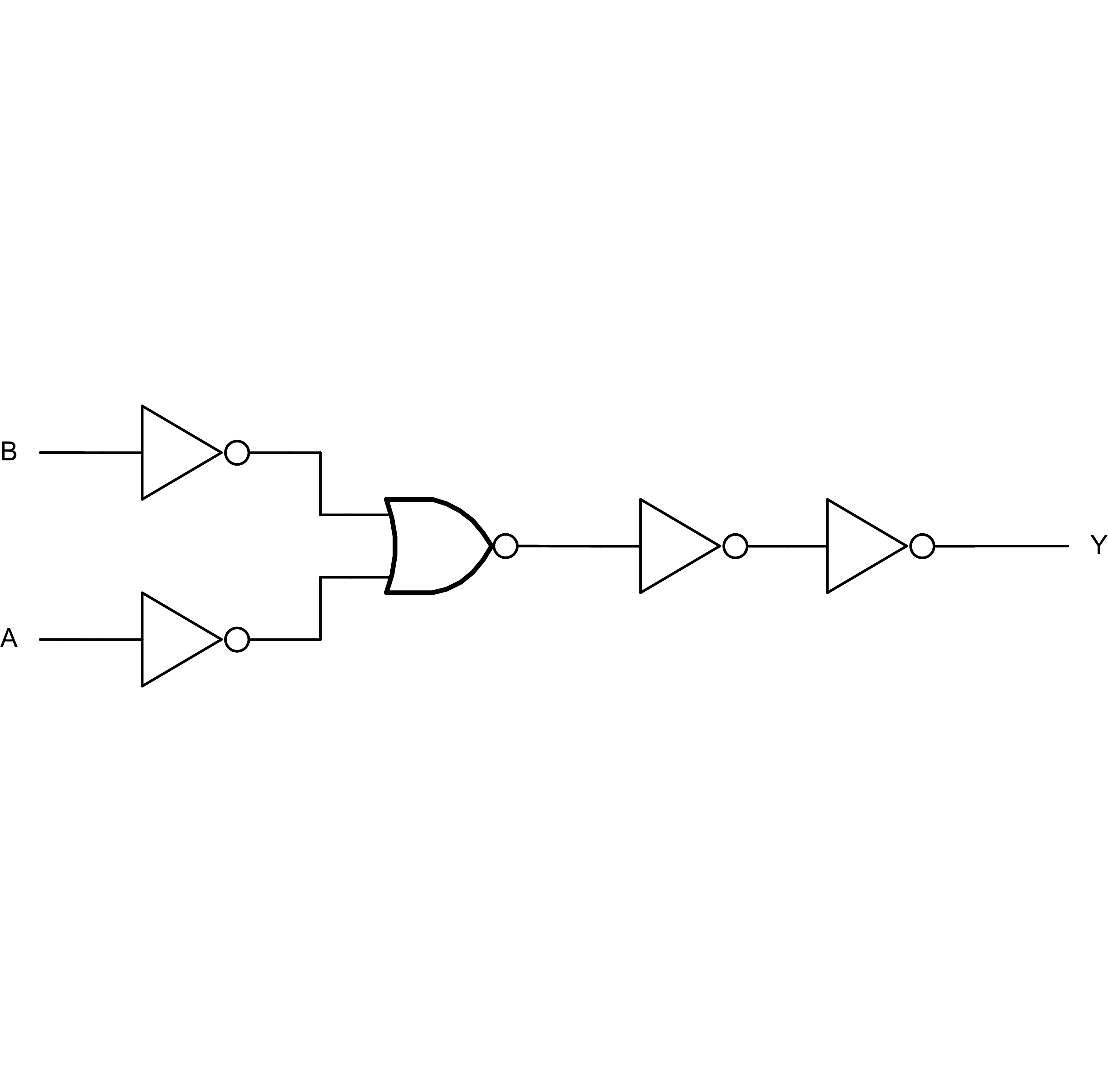

Block Diagram

title Types of Size (KB) date Download the latest English version
SLP74LVC1G08 PDF 185 2022-10-21 SLP74LVC1G08 Brief Datasheet
