The SD3215 is a high performance Class D audio amplifier driver with selectable dead-time PWM modulator. The device is designed for high voltage up to 200V. With necessary external components including two power MOSFET, a half-bridge Class D audio amplifier can be realized. Due to using shut down capacitor, the start and stop click noise is eliminated. The inside Low noise amplifier with carefully isolation allows low noise audio performance.

The device is specially designed comprehensive protection performance to avoid damaging external Power MOSFET, such as over current protection and under voltage protection.


Main feature
  • ±100V voltage ratings

  • Class D audio amplifier driver

  • Integrated analog operational transconductance amplifiers

  • Click noise reduction

  • Self-shutdown and reset after over-current protection

  • Selectable preset dead-time for improved THD

  • Under voltage lock out protection

  • Operates up to 800KHz Specified from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SD3215SC SOP-16-225-1.27 SD3215 Halogen free Tube
SD3215SCTR SOP-16-225-1.27 SD3215 Halogen free Tape & Reel

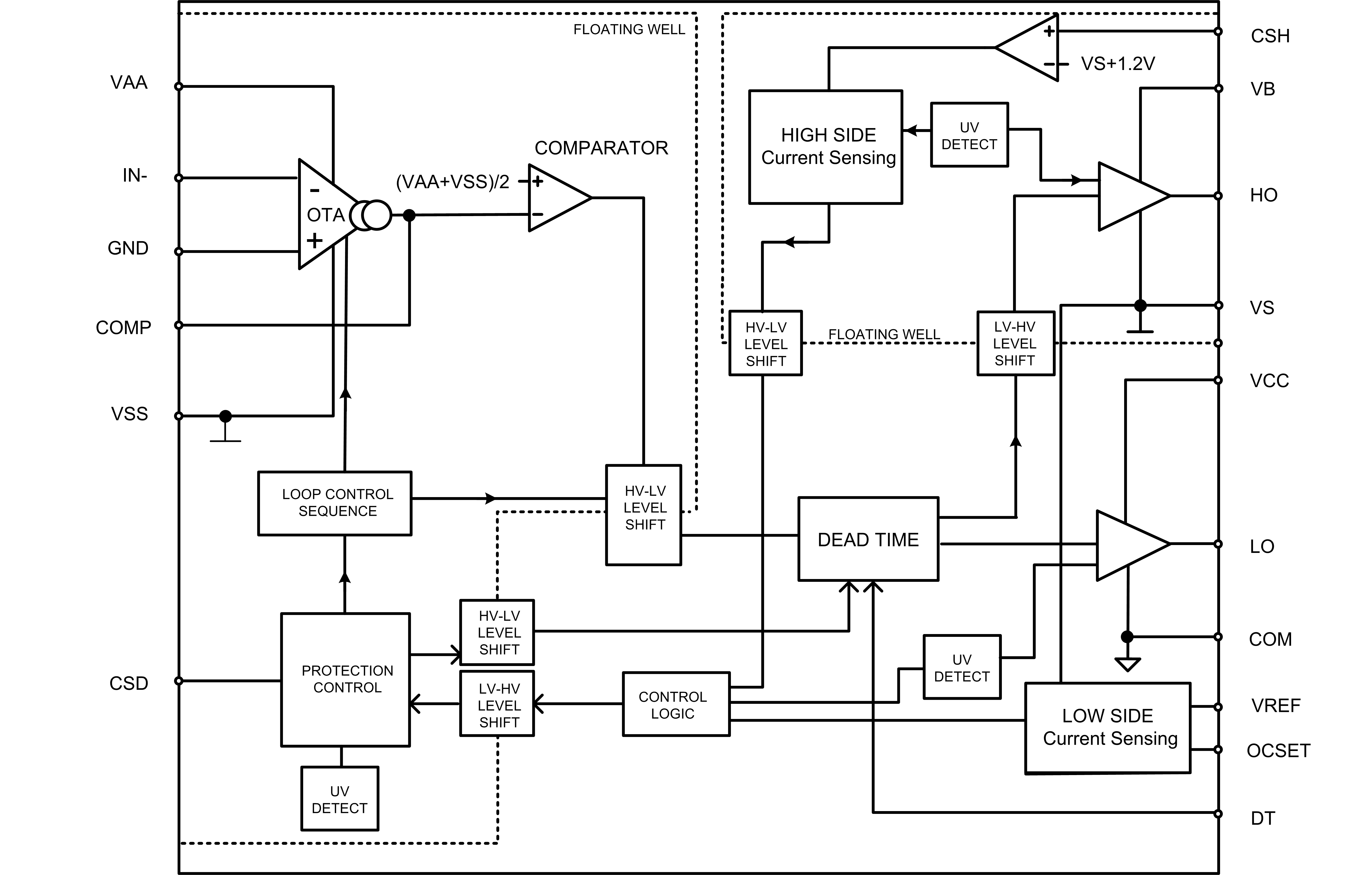

Block Diagram

SD3215 英文.png
