The SLP74LVC3G07 is triple buffer with open-drain output.

The output of the device is open drain. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down.

Main feature
  • 5V tolerant input/output for interfacing with 5V logic

  • Balanced propagation delays

  • Wide supply voltage range from 1.65V to 5.5V

  • 24mA output drive (VCC=3.0V)

  • ESD protection:

  • HBM: 2000V

  • CDM: 1000V

  • Latch-up performance: 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C

Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

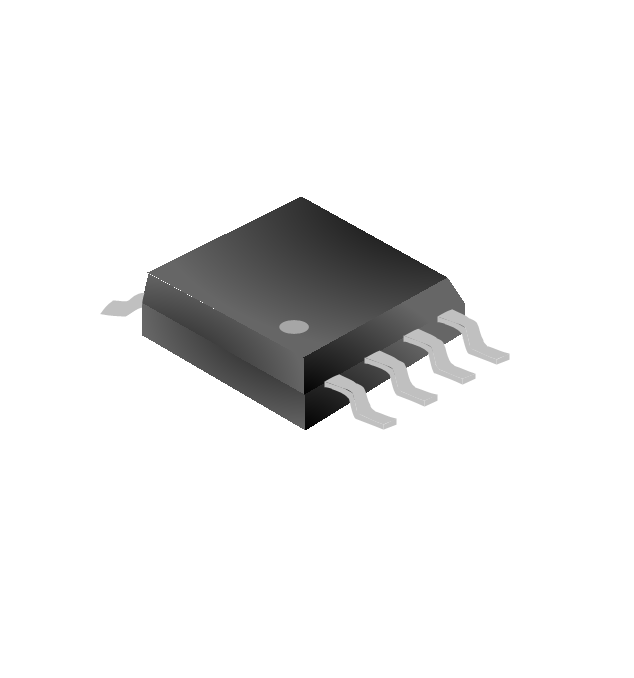

SLP74LVC3G07JWTR VSSOP-8-100-0.5 3G07 Halogen free Tape & Reel
Block Diagram

SLP74LVC3G07  (720&360).png
