    The SLP74LVTN16245B is a high performance bus transceiver. The device is designed for 2.7V to 3.6V Vcc operation, but with the capability to provide TTL interface to a 5V system. When VCC is between 0 and 1.2 V, the devices are in the high-impedance state during power up or power down.

   The device have 16 independent line transceivers with 3-state outputs. When the input of OE(--------- is high, the associated output is in the high-impedance state.  The device transmits data from A to B or from B to A is dependent on the direction control pin (DIR).


Main feature
  • 16-bit bidirectional bus buffer

  • Output capability: +64 mA and -32 mA

  • TTL input and output switching levels

  • No bus current loading when output is tied to 5 V bus

  • Input and output interface capability to systems at 5V supply

  • IOFF and Power-Up 3-State Support Hot Insertion

  • ESD protection:

  • 2000-V Human-Body Model

  • 1000-V Charged-Device Model

  • Latch up performance:

  • 100-mA

  • Specified from -40 °C to +85 °C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLP74LVTN16245BJZ TSSOP-48-300-0.5 LVTN16245B Halogen free Tube
SLP74LVTN16245BJZTR TSSOP-48-300-0.5 LVTN16245B Halogen free Tape&Reel

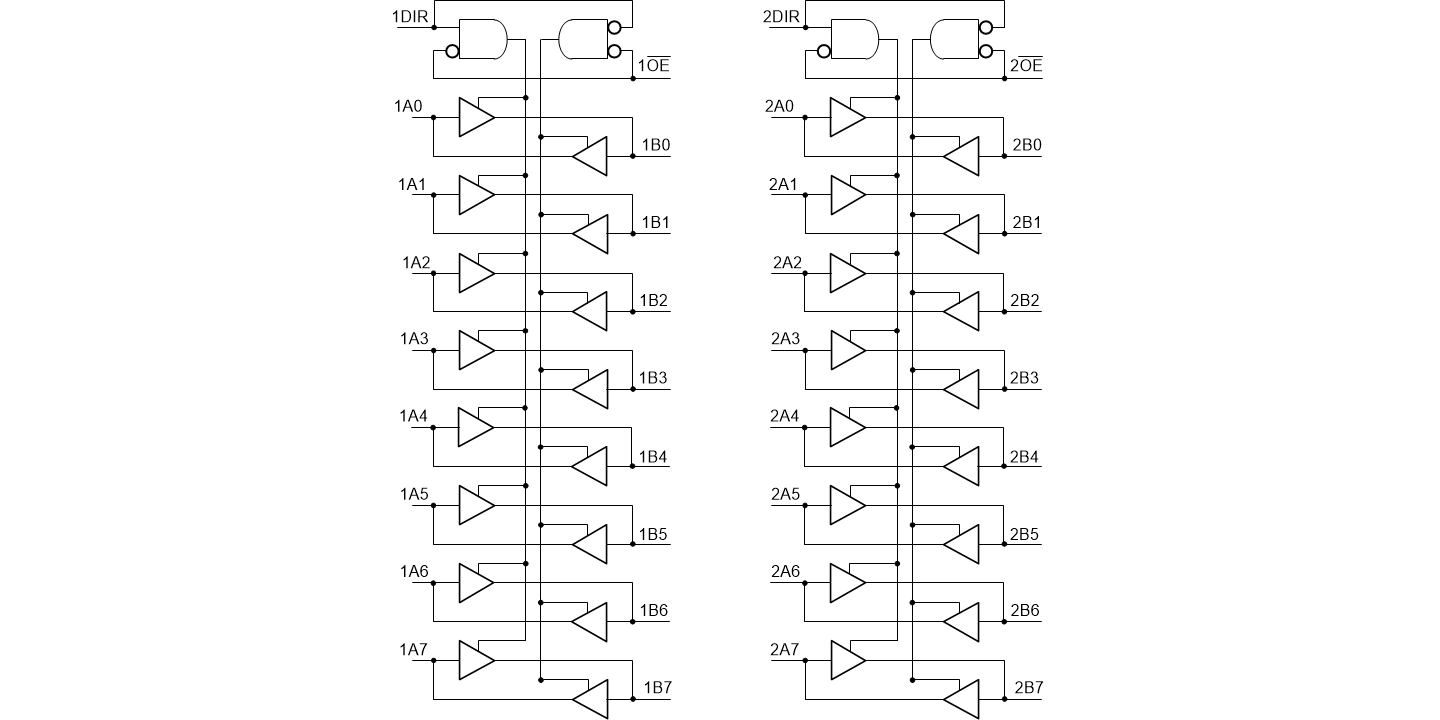

Block Diagram

SLP74LVTN16245B (1440&720).png

Documents
title Types of Size (KB) date Download the latest English version
SLP74LVTN16245B 0 1970-01-01 SLP74LVTN16245B Brief Datasheet
