   SGM50HB12AATFD Module offers the optimum performance for auxiliary inductive heating and electronic welders.

Main feature
  • 50A, 1200V, VCE(sat)(typ.) =2.3V@IC=50A

  • VCE(sat) with positive temperature coefficient

  • High short circuit capability

  • Low switching loss

  • Isolated copper baseplate using DBC technology


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM50HB12AATFD AA SGM50HB12AATFD / Carton

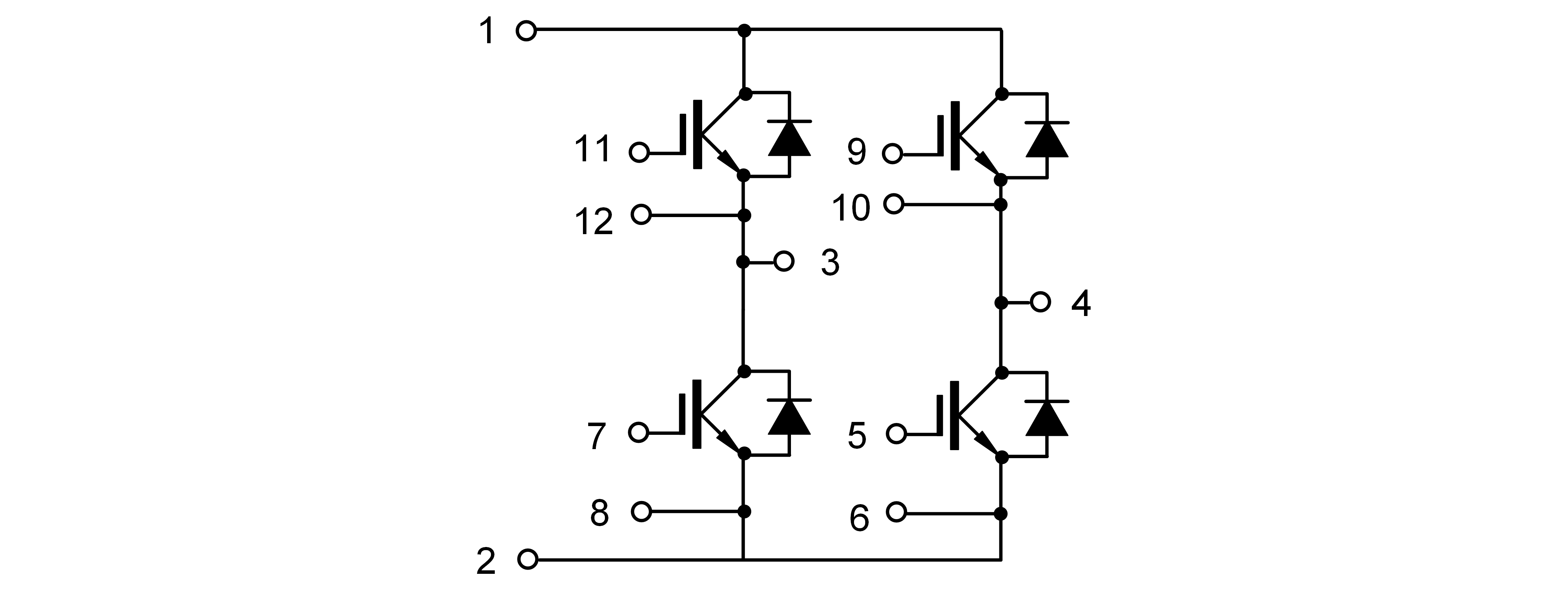

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SGM50HB12AATFD 0 1970-01-01 SGM50HB12AATFD Brief Datasheet

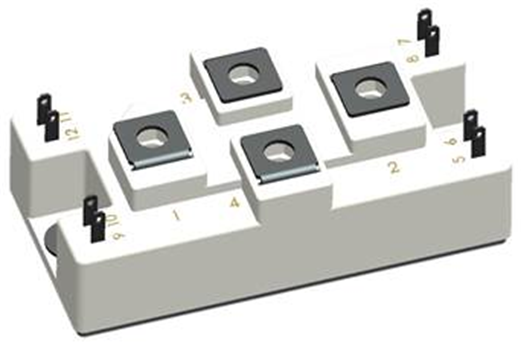

Packages
