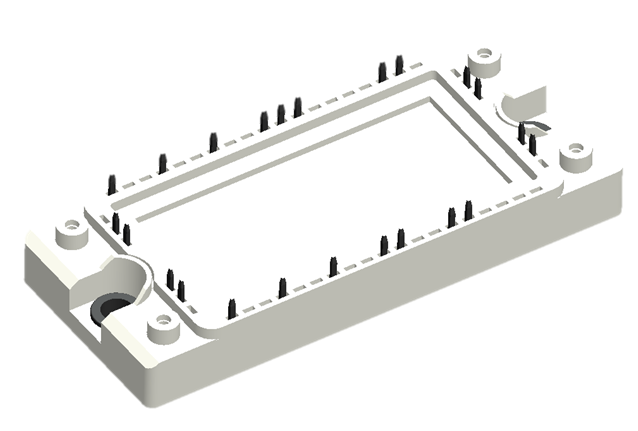

SGM35PA12A6BTFD Module offers the optimum performance for Auxiliary Inverters, Air Conditioning and Motor Drives.
35A, 1200V, VCE(sat)(typ.) =2.2V@IC=35A
VCE(sat) with positive temperature coefficient
High short circuit capability
Low switching loss
Isolated using DBC technology
With NTC
| Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
|---|---|---|---|---|---|
| SGM35PA12A6BTFD | A6B | SGM35PA12A6BTFD | / | Carton |

| title | Types of | Size (KB) | date | Download the latest English version |
|---|---|---|---|---|
| SGM35PA12A6BTFD | 0 | 2024-06-27 | SGM35PA12A6BTFD Brief Datasheet |
