SGM40PA12A6TFD Module offers the optimum performance for Auxiliary Inverters, Air Conditioning and Motor Drives.
40A, 1200V, VCE(sat)(typ.) =2.3V@IC=40A
VCE(sat) with positive temperature coefficient
High short circuit capability
Low switching loss
Isolated using DBC technology
With NTC
| Product Name | Package form | Marking | Hazardous Substance Control | Packing Type | Remarks |
|---|---|---|---|---|---|

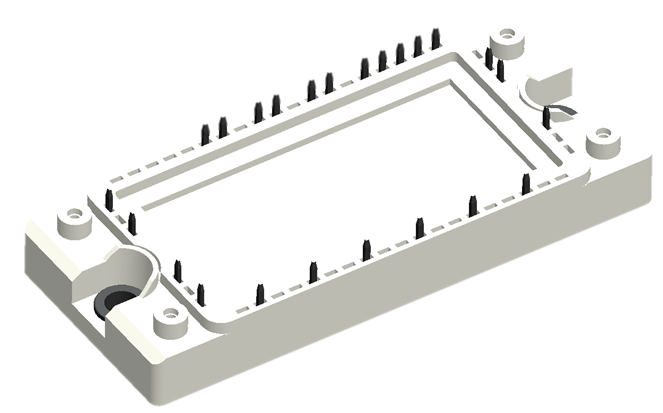

| SGM40PA12A6TFD | A6 | SGM40PA12A6TFD | / | Carton |

| title | Types of | Size (KB) | date | Download the latest English version |
|---|---|---|---|---|
| SGM40PA12A6TFD | 0 | 2024-06-27 | SGM40PA12A6TFD Brief Datasheet |
