      SGM25PA12A6TFD Module provides reliable and high power density output using Silan’s 4th generation IGBT technology for motor control and driver. Compact design consisting of FRD, NTC, rectifier and brake circuit is available to optimize the system and save the cost. It is suitable for Auxiliary Inverters, Air Conditioning and Motor Drives.

Main feature
  • 25A, 1200V, VCE(sat)(typ.) =1.85V@IC=25A

  • VCE(sat) with positive temperature coefficient

  • High short circuit capability

  • Low switching loss

  • Isolated using DBC technology

  • With NTC


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM25PA12A6TFD A6 SGM25PA12A6TFD / Carton

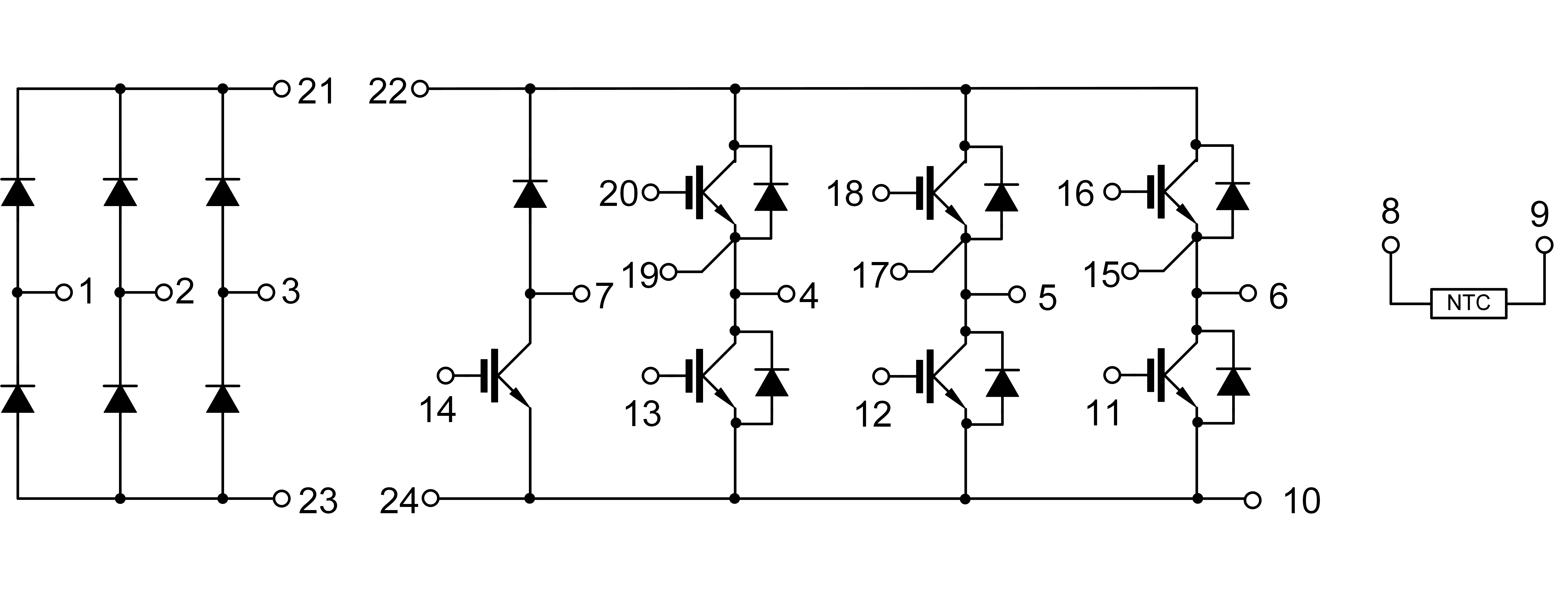

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SGM25PA12A6TFD 0 1970-01-01 SGM25PA12A6TFD Brief Datasheet

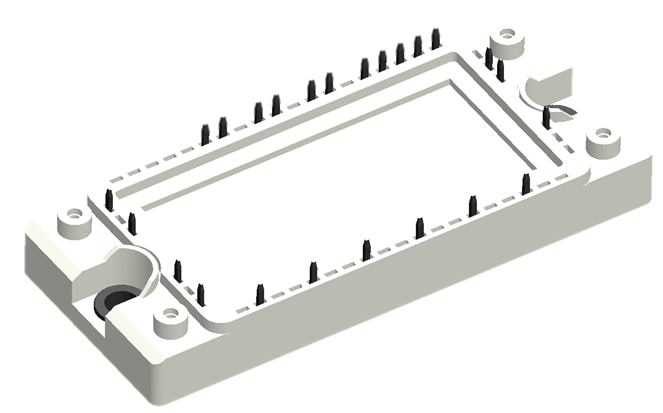

Packages
