     SGM15PA12A5TFD Module offers the optimum performance for Auxiliary Inverters, Air Conditioning and Motor Drives.

Main feature
  • 15A,1200V,VCE(sat)(typ.) =1.9V@IC=15A

  • VCE(sat) with positive temperature coefficient

  • High short circuit capability

  • Low switching loss

  • Isolated using DBC technology

  • With NTC


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM15PA12A5TFD A5 SGM15PA12A5TFD / Carton

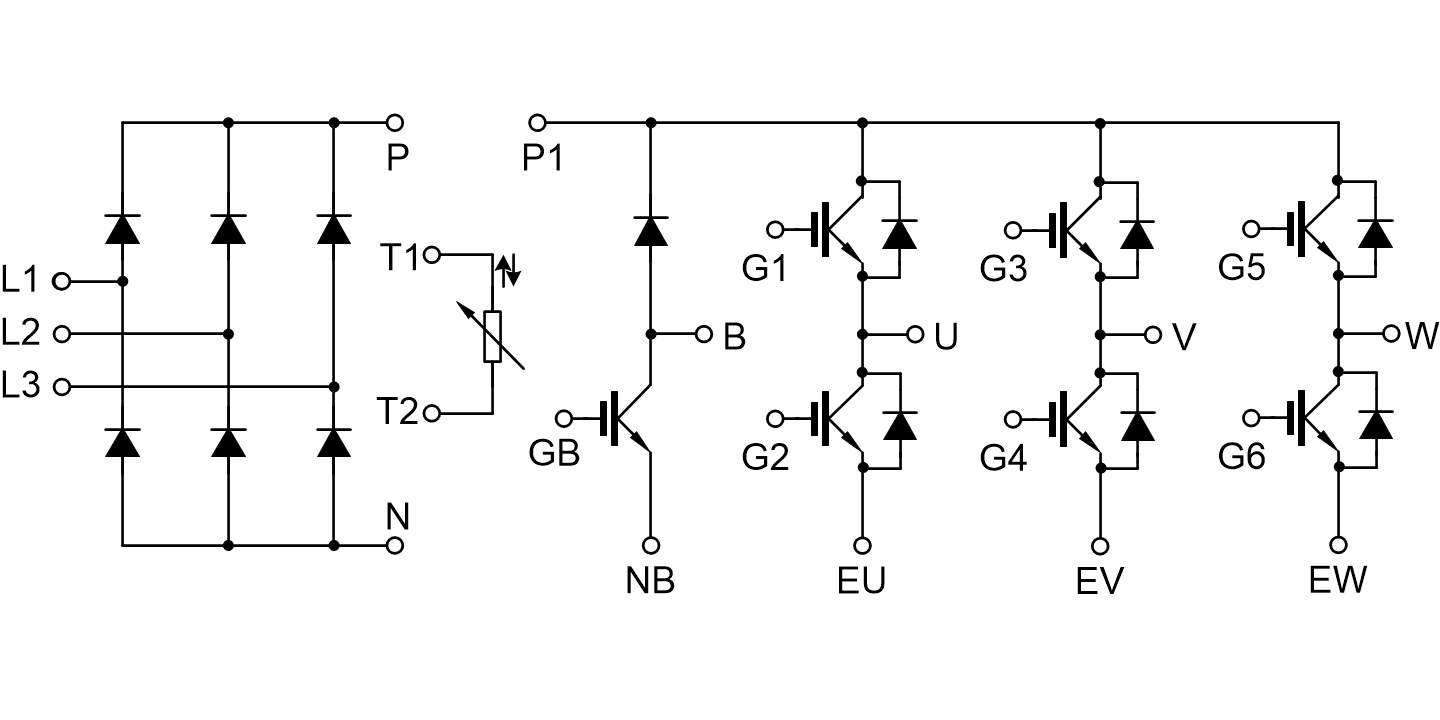

Block Diagram

SGM15PA12A5TFD (1440&720).png

Documents
title Types of Size (KB) date Download the latest English version
SGM15PA12A5TFD 0 1970-01-01 SGM15PA12A5TFD Brief Datasheet

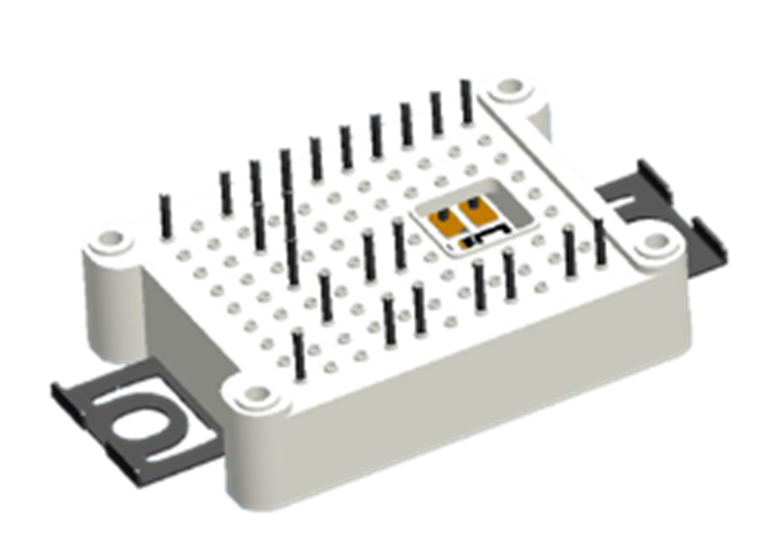

Packages
