    SGM100HF12A1TLD Module offers the optimum performance for UPS, AC inverter drive and electronic welders.

Main feature
  • 100A, 1200V, VCE(sat)(typ.) =2.0V@IC=100A

  • VCE(sat) with positive temperature coefficient

  • High short circuit capability

  • Low switching loss

  • Isolated copper baseplate using DBC technology


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SGM100HF12A1TLD A1 SGM100HF12A1TLD / Carton

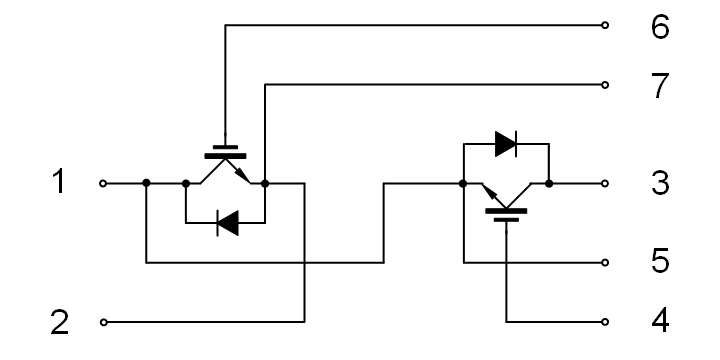

Block Diagram

SGM100HF12A1TLD (720&360).png

Documents
title Types of Size (KB) date Download the latest English version
SGM100HF12A1TLD 0 1970-01-01 SGM100HF12A1TLD Brief Datasheet
