SD7860
PRIMARY SIDE REGULATED CONSTANT CURRENT LOW PFC ISOLATED FLYBACK CONTROLLER FOR LED DRIVER

    The SD7860 is a primary side regulated constant current low PFC isolated flyback controller, it has a built-in high voltage power MOSFET, is used together with a pre-stage APFC boost circuit to achieve two stage isolated no flicker application.

    The SD7860 provides accurate constant current control and operates in boundary conduction mode (BCM). The Device adopts primary side regulation eliminating the opto-couple for simplifying design and reducing cost.

    The SD7860 provides complete protections such as short LED protection, open LED protection and over temperature protection, etc.


Main feature
  • PSR flyback topology

  • Boundary Conduction Mode

  • Leading edge blanking

  • VCC under voltage lockout

  • Over temperature protection

  • Cycle by cycle current limiting

  • Short LED protection and Open LED protection


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SD7860 SOP-8-225-1.27 SD7860 Halogen free Tube
SD7860TR SOP-8-225-1.27 SD7860 Halogen free Tape & Reel

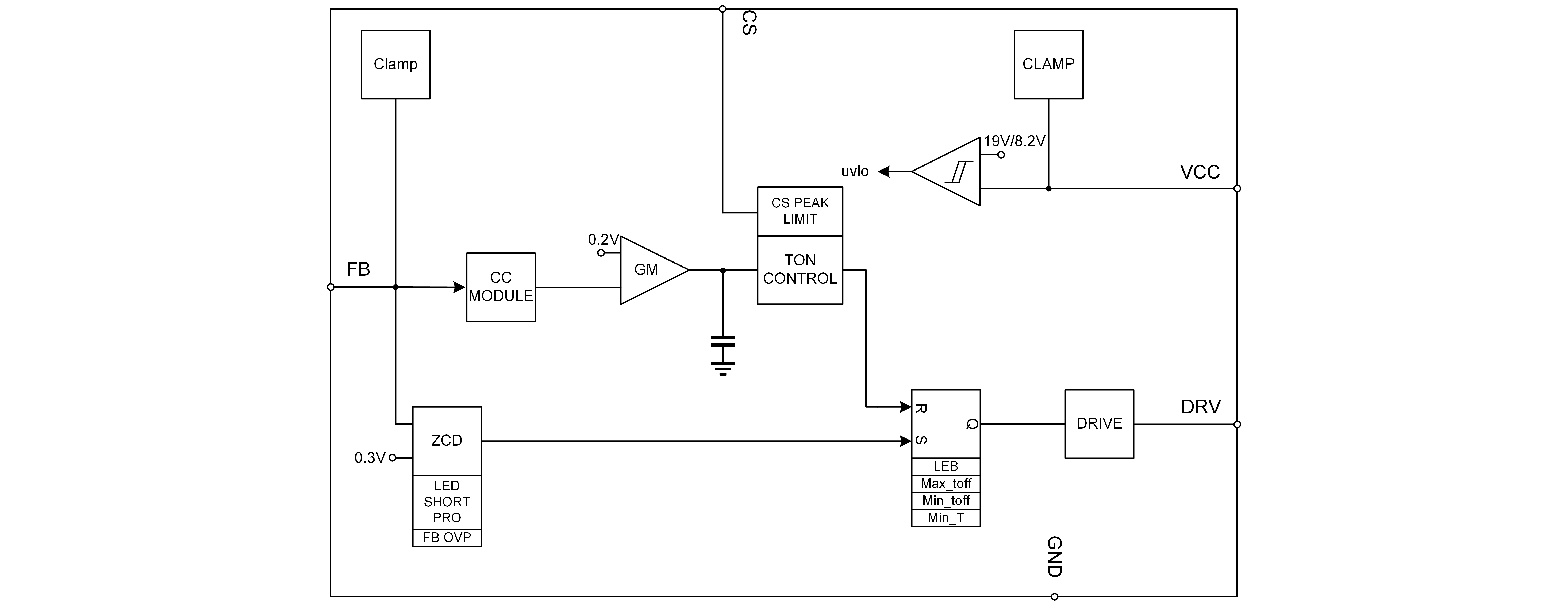

Block Diagram

SD7860 中英文同.png

Documents
title Types of Size (KB) date Download the latest English version
SD7860 0 1970-01-01 SD7860 Brief Datasheet
