    The SDH752XH is a high performance, critical conduction mode power factor correction (PFC) controller with MOSFET.

    SDH752XH adopts high voltage power supply, and omits auxiliary winding by adopting MOS gate zero crossing detection technology.

    It uses patented COMP-saving capacitor technology to achieve excellent power factor correction and constant voltage output with only a few peripheral components, which greatly reduces the system cost.

    It provides various protections, such as output over voltage protection, CS cycle-by-cycle current limit and over temperature protection etc.


Main feature
  • Single winding inductor booster system with reduced periphery

  • High voltage start-up and power supply

  • Built-in high-voltage MOSFET

  • Gate Zero-crossing detection and critical conduction mode

  • Fixed on time control

  • Patented closed-loop control technology, without peripheral compensation network, anti-moisture and anti-leakage

  • VCC under-voltage lockout

  • Output overvoltage protection

  • CS cycle-by-cycle current limit

  • Over temperature protection


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH7524H EHSOP-5-325-1.7 7524H Halogen free Tube
SDH7524HTR EHSOP-5-325-1.7 7524H Halogen Free Tape & Reel

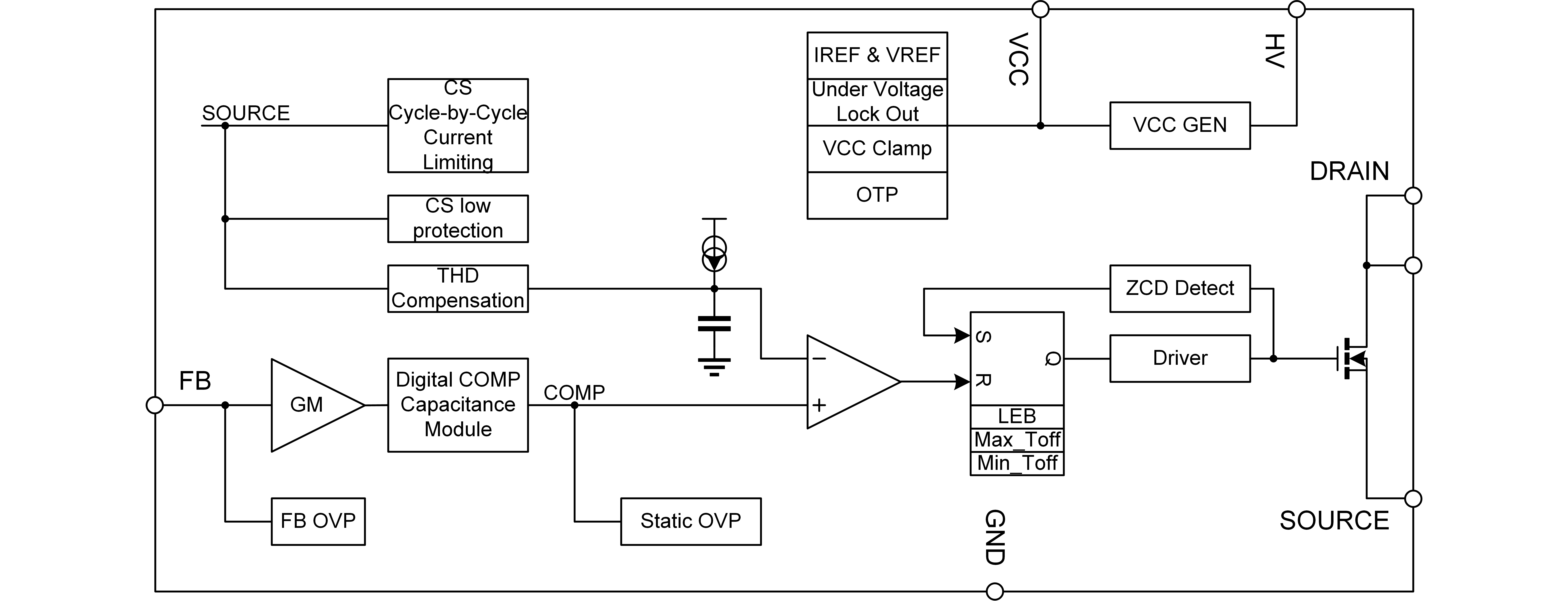

Block Diagram

SDH752XH 中英文同.png

Documents
title Types of Size (KB) date Download the latest English version
SDH752XH 0 1970-01-01 SDH752XH Brief Datasheet
