SD7882
SINGLE STAGE PRIMARY SIDE REGULATION HIGH POWER FACTOR LED DRIVER IC WITH PWM/LINEAR DIMMING

    The SD7882 is a single stage primary side regulation high power factor LED driver with dimming function, it has PWM and linear dimming functions, with dimming depth up to 2%, it is mainly used in isolated flyback smart LED lighting system.

    The SD7882 provides accurate constant current control and operates in boundary conduction mode (BCM) with high efficiency. It adopts primary side regulation eliminating the opto-couple, secondary feedback control and loop compensation, which effectively simplifies the design and reduces the system cost.

    The SD7882 provides complete protections such as short LED protection, open LED protection and over temperature protection, etc.


Main feature
  • Dimmable range of 2% to 100%

  • PSR flyback topology

  • Boundary conduction mode

  • Low start-up current

  • Leading edge blanking

  • VCC under voltage lockout

  • Over temperature protection

  • Short LED protection and Open LED protection


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SD7882 SOP-8-225-1.27 / Halogen Free Tube
SD7882TR SOP-8-225-1.27 / Halogen Free Tape & Reel

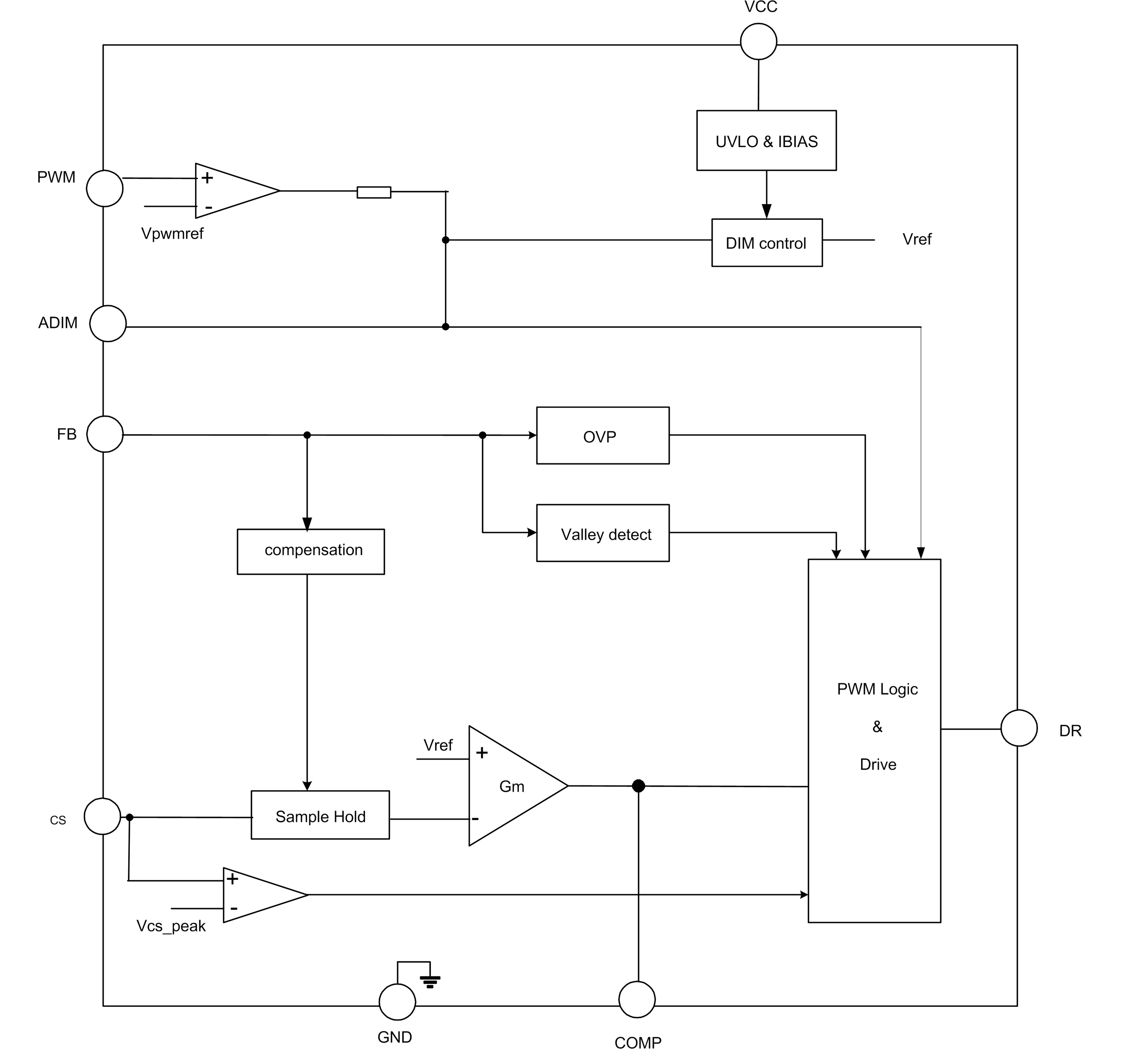

Block Diagram
