The SDH2108 is a high voltage N-type power MOSFET and IGBT half bridge driver, whose built-in undervoltage lockout prevents the power device from working under low control voltage, Schmidt trigger circuit is used at the input, which features high noise immunity to ensure that the power tube will not be turned on by noise.


Main feature
  • High-side floating supply absolute voltage:600V

  • Output current:+2.7A/-3A

  • 3.3V/5V/15V input logic compatible

  • Under-voltage (UV) lockout

  • dV/dt immune

  • High noise immunity

  • High-/low-side transmission delay matching


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDH2108 SOP-8-225-1.27 SDH2108 Halogen free Tube
SDH2108TR SOP-8-225-1.27 SDH2108 Halogen free Tape&Reel

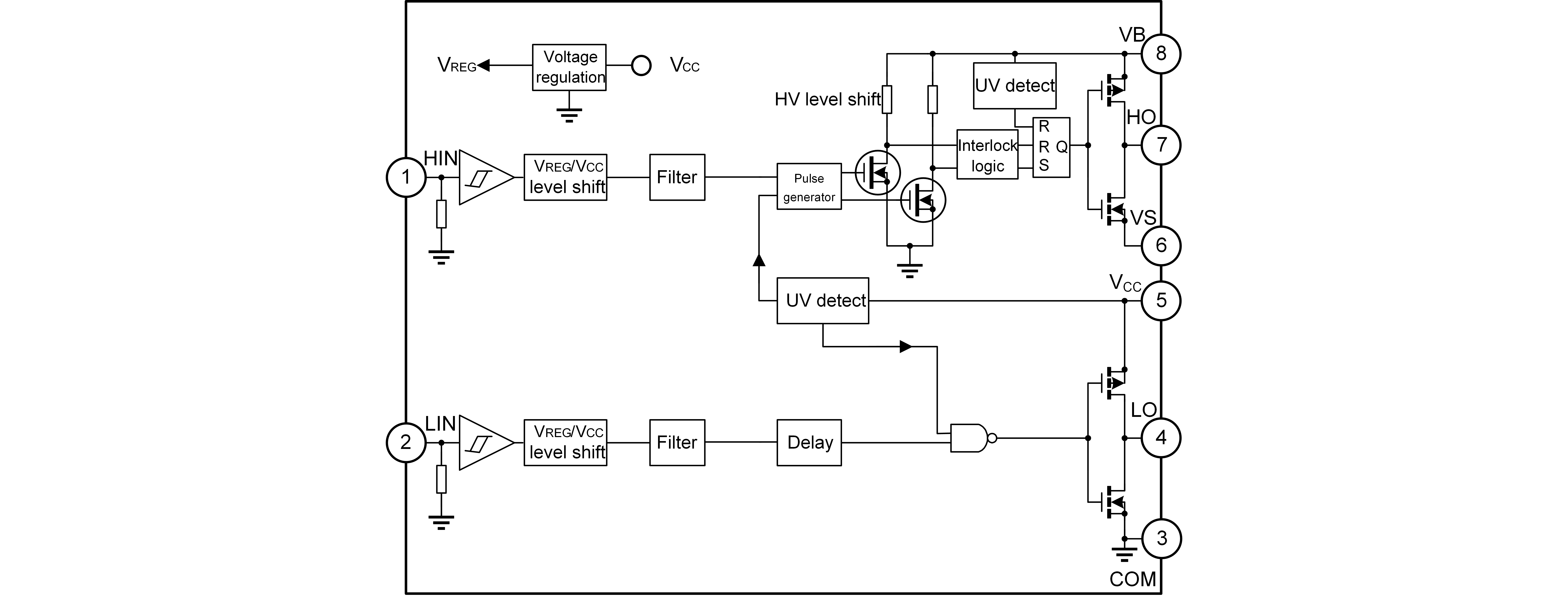

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SDH2108 0 1970-01-01 SDH2108 Brief Datasheet
