The SLQ74AHC1G08 is high-speed CMOS devices.

This device is a 2-input AND gate.


Main feature
  • AEC-Q100 Qualified

  • Balanced propagation delays

  • All inputs have a Schmitt-trigger action

  • Compatible with CMOS input levels

  • ESD protection:

  • HBM : 2000V

  • CDM : 1000V

  • Latch-up performance : 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLQ74AHC1G08KMTR SOT-353-5L QE Halogen free Tape&Reel

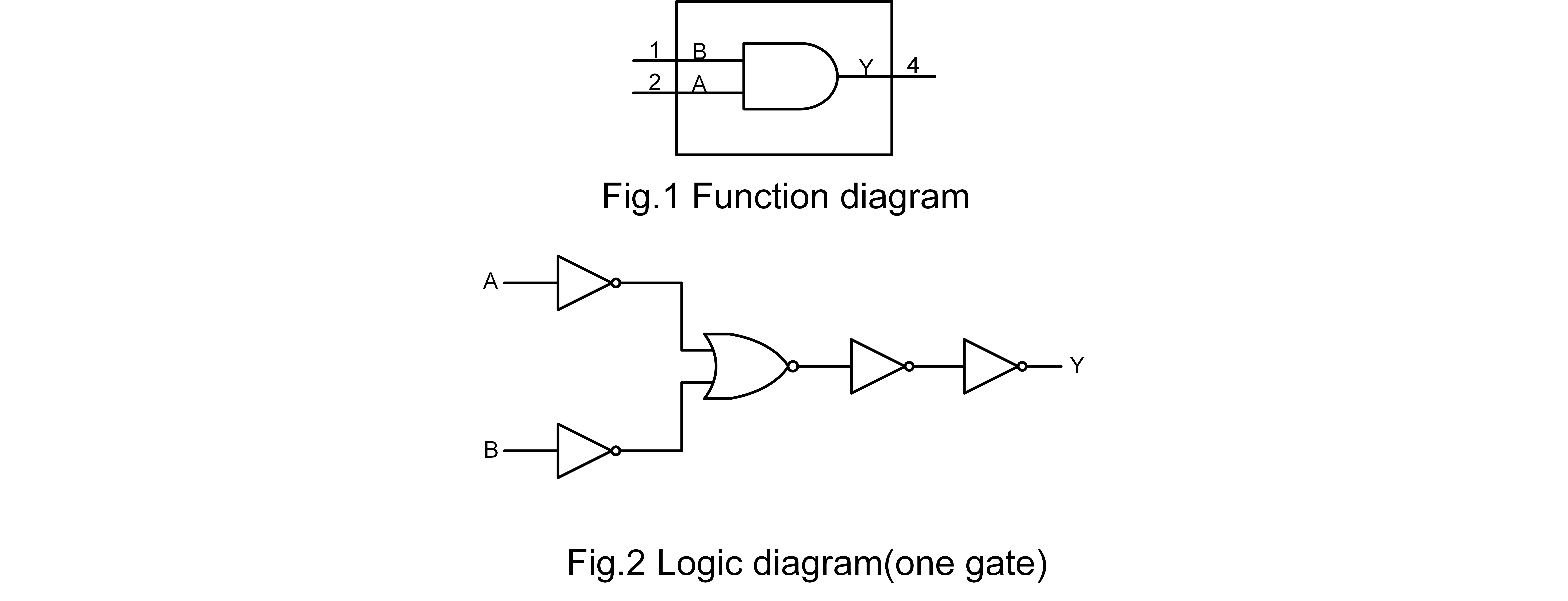

Block Diagram

SLQ74AHC1G08 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SLQ74AHC1G08 0 1970-01-01 SLQ74AHC1G08 Brief Datasheet
Packages
