  The SLQ74LVC1G32 is designed for 1.65V to 5.5V VCC operation, performs the Boolean function Y=A+B.

  Inputs can be driven from either 3.3V or 5V devices. These features allow the use of these devices in a mixed 3.3V and 5V system environment.

  Schmitt trigger action at all inputs makes the circuit tolerant for slower input rise and fall time.

  This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing damaging backflow current through the device when it is powered down.


Main feature
  • AEC-Q100 Qualified

  • Supports 1.65V to 5.5V VCC operation

  • ±24mA output drive at VCC=3.0V

  • CMOS low power consumption

  • Direct interface with TTL levels

  • Input accept voltages up to 5.5V

  • ESD protection:

  • HBM : 2000V

  • CDM : 1000V

  • Latch-up performance : 250mA

  • Specified from -40°C to +85°C and -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLQ74LVC1G32KMTR SOT-353-5L QG Halogen free Tape & Reel

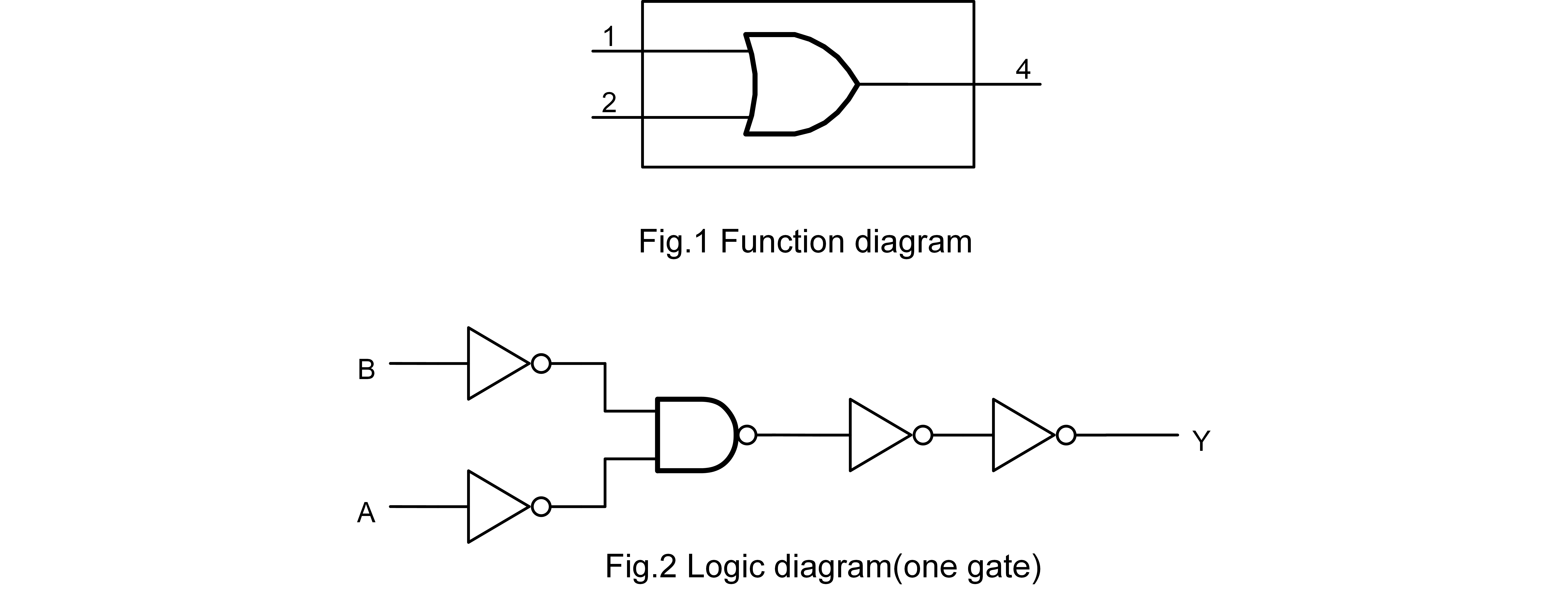

Block Diagram

SLQ74LVC1G32 英文.png

Documents
title Types of Size (KB) date Download the latest English version
SLQ74LVC1G32 0 1970-01-01 SLQ74LVC1G32 Brief Datasheet
