SLQ74AVC4T245
4-BIT DUAL SUPPLY TRANSLATING TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
Description Main feature Product specification classification Internal block diagram Technical documentation Relevant package outline drawing

    The SLQ74AVC4T245 is an 4-bit transceiver that enables bidirectional level translation. This device uses two separate configurable power-supply rails. Both VCC(A) and VCC(B) can be supplied at any voltage between 0.8 V and 3.6 V making the device suitable for translating between any of the low voltage nodes (0.8V, 1.2V, 1.5V, 1.8V,2.5V and 3.3V). Pins nAn, nOE——— and nDIR are referenced to VCC(A) and pins nBn are referenced to VCC(B).

    The SLQ74AVC4T245 is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (nDIR) input. The output-enable (nOE——— ） input can be used to disable the outputs so the buses are effectively isolated.

    The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing any damaging backflow current through the device when it is powered down. In suspend mode when either VCC(A) or VCC(B) are at GND level, both nAn and nBn are in the high-impedance OFF-state.


Main feature

  • AEC-Q100 Qualified

  • Wide supply voltage range:

  • VCC(A) : 0.8V to 3.6V; VCC(B) : 0.8V to 3.6V

  • Inputs accept voltages up to 3.6V

  • IOFF circuitry provides partial Power-down mode operation

  • Maximum data rates:

  • 380Mbit/s ( 1.8V to 3.3V translation)

  • 200Mbit/s ( 1.1V to 3.3V translation)

  • 200Mbit/s ( 1.1V to 2.5V translation)

  • 200Mbit/s ( 1.1V to 1.8V translation)

  • 150Mbit/s ( 1.1V to 1.5V translation)

  • 100Mbit/s ( 1.1V to 1.2V translation)

  • ESD protection:

  • HBM : 8000V

  • CDM : 1000V

  • Latch-up performance : 100mA

  • Specified from -40°C to +85°C and from -40°C to +125°C


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SLQ74AVC4T245JS TSSOP-16-225-0.65 QAVC4T245 Halogen Free Tube
SLQ74AVC4T245JSTR TSSOP-16-225-0.65 QAVC4T245 Halogen Free Tape&Reel

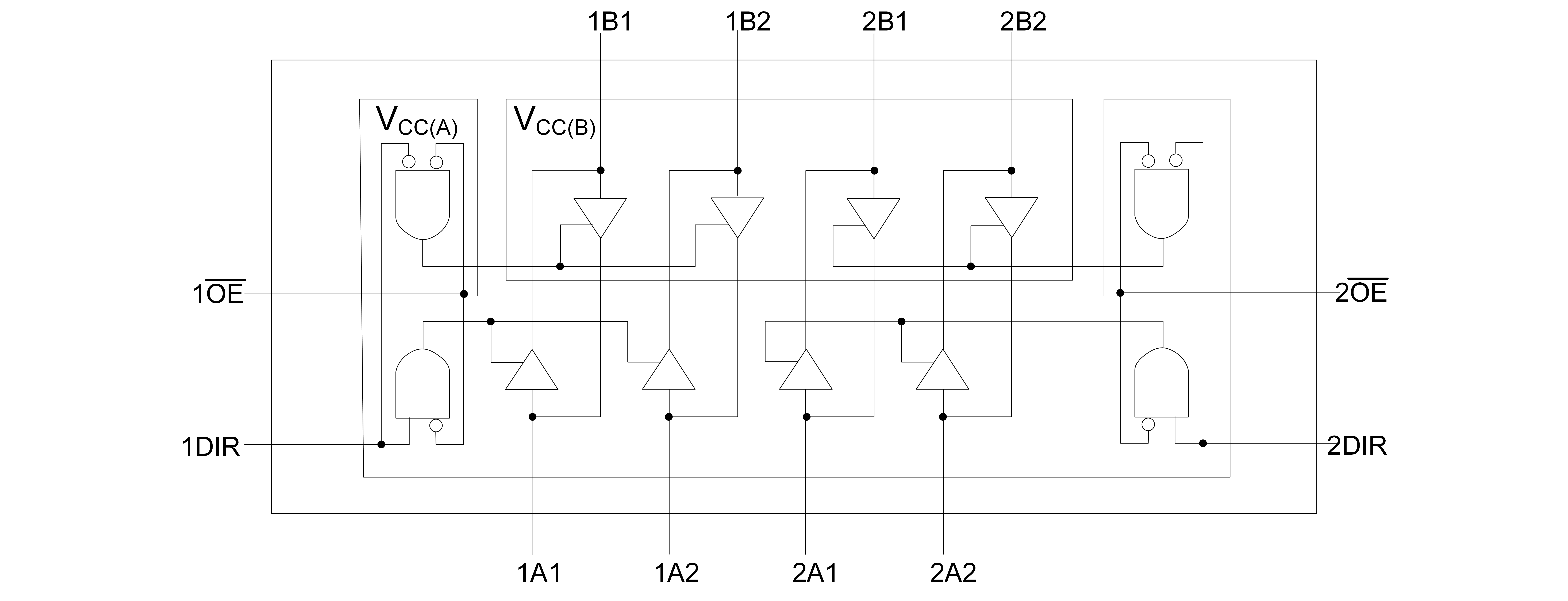

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SLQ74AVC4T245 0 1970-01-01 SLQ74AVC4T245 Brief Datasheet
