   The SQ7805A employs internal current limiting, thermal shut-down, and safe operating area protection. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulator, this device can be used with external components for adjustable voltages and currents.

Main feature
  • Output Current up to 1A

  • Thermal Overload Protection

  • Short-Circuit Protection

  • Output Transistor Safe Operating Area Protection

  • AEC−Q100 Qualified

  • ESD protection:

  • HBM : 2000V

  • CDM : 500V


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SQ7805ATATR TO-252-2L SQ7805A Halogen free Tape&Reel

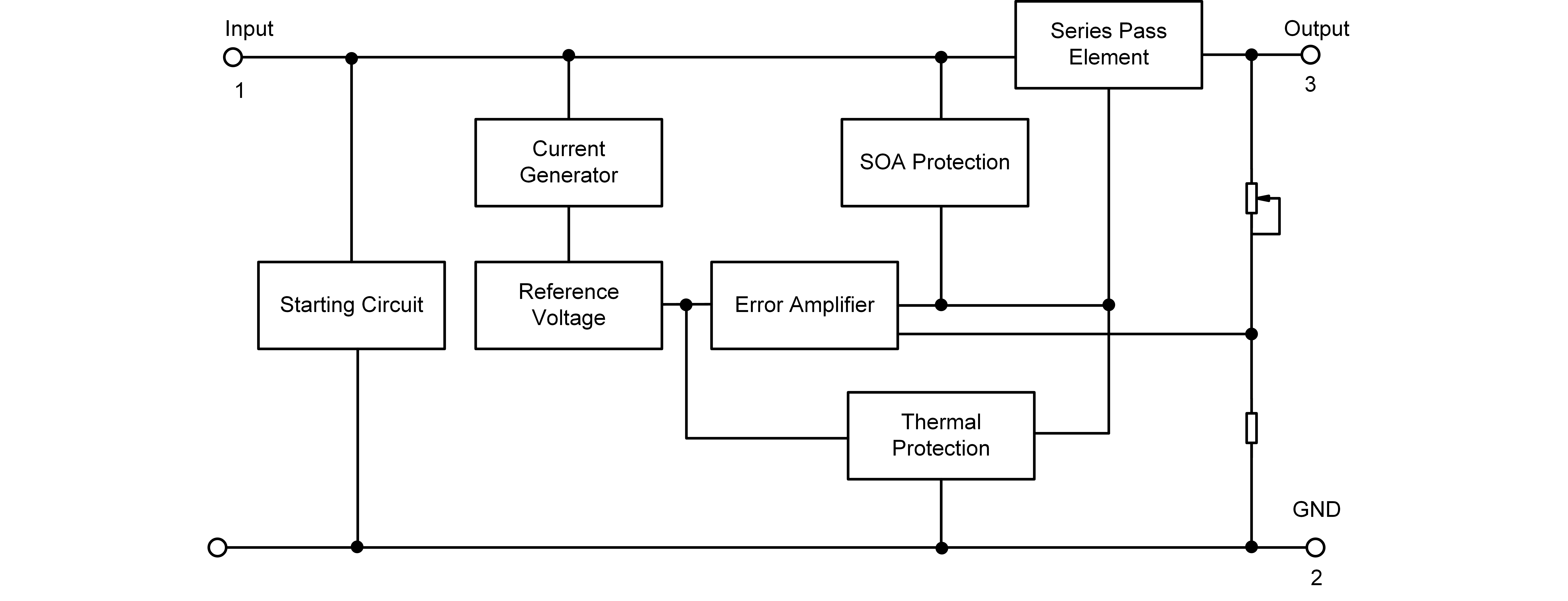

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SQ7805A 0 1970-01-01 SQ7805A Brief Datasheet
Packages
