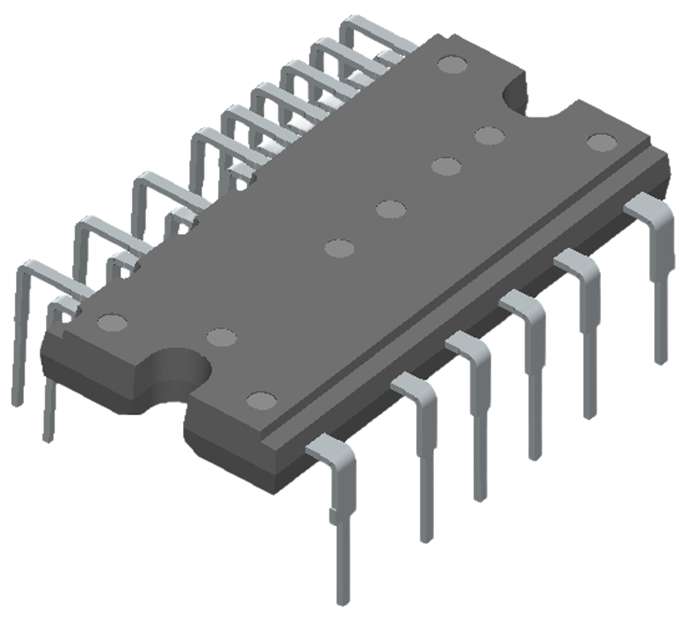

    SDM15Q60TA is a highly integrated and highly reliable three-phase brushless DC motor drive circuit, which is mainly used in lower power variable frequency drives such as air conditioners, refrigerators, washing machines, and the like. It incorporates a 3-phase full-bridge high-voltage gate driver circuit and six low-loss IGBTs

    SDM15Q60TA integrates various protection functions such as undervoltage, short circuit, and overtemperature, as well as temperature output, providing excellent protection and a wide safe operating range. All three phases share a common negative DC terminal, suitable for applications requiring inverter current detection.

    SDM15Q60TA is designed with good insulation and perfect thermal properties. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature
  • Built-in six 600V/15A low-loss IGBTs

  • Built-in high-voltage Gate driver circuit (HVIC)

  • Built-in under voltage protections, over temperature/over current protection and temperature output

  • Bootstrap diode with integrated current-limiting resistor in HVIC

  • Compatible with 3.3V, 5V MCU interface, active high

  • One negative DC terminal for inverter current sensing applications

  • Alarm signals: corresponding to low-side undervoltage protection, overtemperature protection, and short-circuit protection

  • Insulation class: 2000Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM15Q60TA DIP-Q25A SDM15Q60TA Halogen free Tube
Block Diagram
