SDM04V60DA3
INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/4A

    SDM04V60DA3 is a highly integrated and highly reliable three-phase brushless DC motor drive circuit, which is mainly used in lower power frequency conversion drives, such as fans, pumps, etc. It contains 6 fast recovery power MOSFETs and 3 half-bridge HVIC for gate driving.

    SDM04V60DA3 integrates various protection functions such as undervoltage, short circuit, and overtemperature, as well as temperature output, providing excellent protection and a wide safe operating range. Since each phase has an independent negative DC terminal, its current can be sensed separately.

    SDM04V60DA3 is designed with good insulation and perfect thermal properties. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature
  • Built-in six 600V/4A fast recovery MOSFETs

  • Built-in high-voltage Gate driver circuit (HVIC)

  • Built-in under voltage protections, over temperature/over current protection and temperature output

  • Built-in shut-down input

  • Built-in inter-lock function

  • Built-in bootstrap diode

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminals for inverter current detection

  • Insulation class: 1500Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

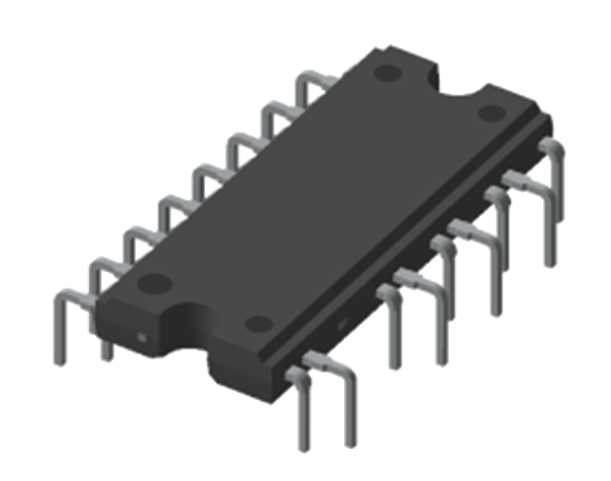

SDM04V60DA3 DIP-2VC SDM04V60DA3 Halogen free Tube
Block Diagram
