SDM15LF60TAB
INTELLIGENT POWER MODULE(IPM), 3 PHASE FULL-BRIDGE 600V/15A

    SDM15LF60TAB is a highly integrated and highly reliable three-phase brushless DC motor drive circuit, which is mainly used in lower power variable frequency drives such as air conditioners, refrigerators, washing machines, and the like. It incorporates a 3-phase full-bridge high-voltage gate driver circuit and six low-loss IGBTs.

    SDM15LF60TAB integrates various protection functions such as undervoltage, short circuit, and overtemperature, as well as temperature output, providing excellent protection and a wide safe operating range. Since each phase has an independent negative DC terminal, its current can be sensed separately.

    SDM15LF60TAB is designed with good insulation and perfect thermal properties. It is compact and suitable for built-in motors or any other applications requiring the compact installation.


Main feature
  • Built-in six 600V/15A low-loss IGBTs

  • Built-in high-voltage Gate driver circuit (HVIC)

  • Built-in under voltage protections, over temperature/over current protection and temperature output

  • Bootstrap diode with integrated current-limiting resistor

  • Compatible with 3.3V, 5V MCU interface, active high

  • Three independent negative DC terminals are used for current detection in the inverter application.

  • Alarm signals: corresponding to low-side undervoltage protection, overtemperature protection, and short-circuit protection

  • Insulation class: 2000Vrms/min


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SDM15LF60TAB SDIP-26C SDM15LF60TAB Halogen free Tube
Block Diagram

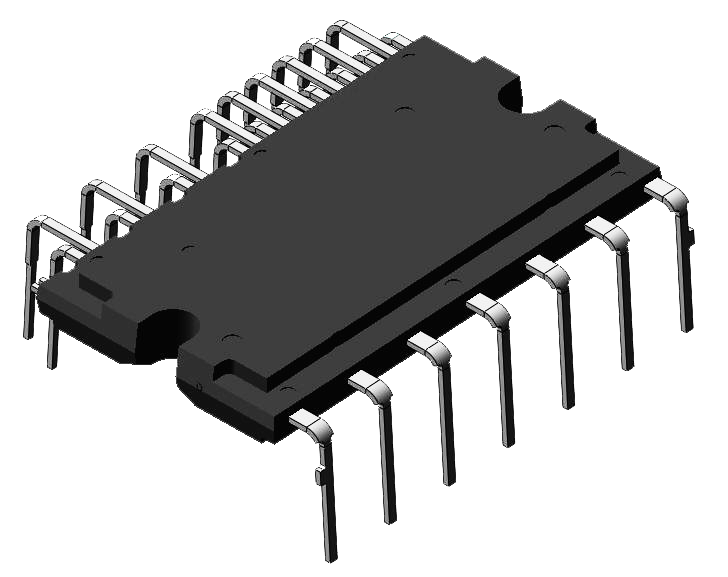

Packages
