     SQ317 is an adjustable three-terminal positive voltage regulator, providing a maximum current exceeding 0.5A when the output voltage range is 1.25V to 37V. This voltage regulator is exceptionally easy to use, and only two external resistors are needed to set the output voltage. In addition, internal current limiting, thermal shutdown and safe working area compensation are used to basically prevent the fuse from blowing.

Main feature
  • Output adjustable voltage low to 1.25V

  • Maximum output current: 0.5A

  • Internal short circuit protection

  • Over current/over thermal protection

  • Transistor safe working area protection

  • Standard three-terminal transistor package

  • AEC−Q100 Qualified


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SQ317KH SOT-223-3L SQ317KH Halogen free Tube
SQ317KHTR SOT-223-3L SQ317KH Halogen free Tape & Reel

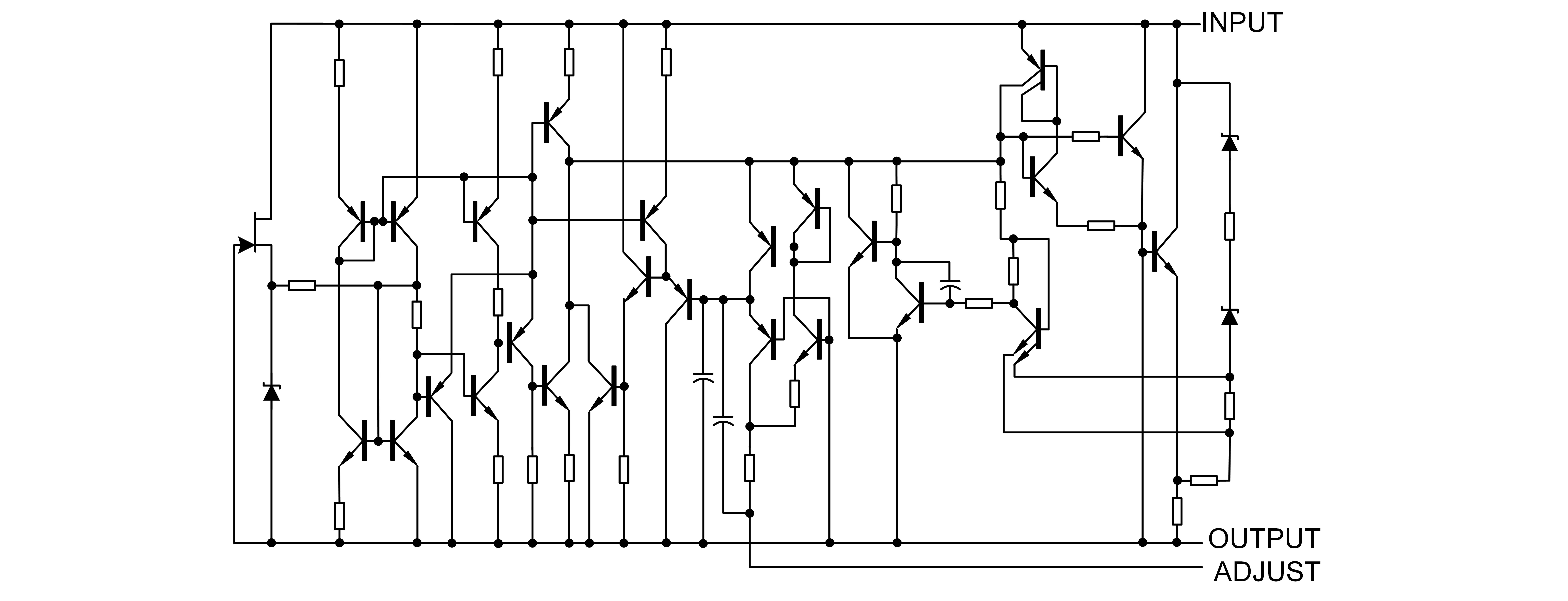

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SQ317 0 1970-01-01 SQ317 Brief Datasheet
