    The SQ9702 is a H-bridge gate driver that use four external N-channel MOSFETs targeted to drive a bidirectional brushed- DC motor.

    A PH/EN, independent H-Bridge, or PWM interface allows simple interfacing to controller circuits. An internal sense amplifier provides adjustable current control. Integrated Charge-Pump allows for 100% duty cycle support and can be used to drive external reverse battery switch.

    Independent Half Bridge mode allows sharing of half bridges to control multiple DC motors sequentially in a cost-efficient way. The gate driver includes circuitry to regulate the winding current using fixed off-time PWM current chopping.

    The SQ9702 include Smart Gate Drive technology to remove the need for any external gate components (resistors and Zener diodes) while protecting the external FETs. The Smart Gate Drive architecture optimizes dead time to avoid any shoot-through conditions, provides flexibility in reducing electromagnetic interference (EMI) with programmable slew-rate control and protects against any gate-short conditions. Additionally, active and passive pulldowns are included to prevent any dv/dt gate turn on.


Main feature
  • AEC-Q100, Grade 1: -40°C~125°C

  • Single H-Bridge Gate Driver, Supports 100% PWM Duty Cycle

  • Operating Supply-Voltage Range: 5.5V~45V

  • Three Control-Interface Options: PH/EN, Independent H-Bridge, and PWM

  • Smart Gate Drive Architecture, Adjustable Slew-Rate Control

  • Supports 1.8V, 3.3V, and 5V logic inputs

  • Integrated a Current-Shunt Amplifier

  • Integrated PWM Current Regulation

  • Low-Power Sleep Mode

  • Protection Features

  • Undervoltage Lockout:

                Supply Undervoltage (UVLO),

                Charge-Pump Undervoltage (CPUV)

  • Overcurrent Protection (OCP)

  • Gate-Driver Fault (GDF)

  • Thermal Shutdown (TSD)

  • Fault-Condition Output (nFAULT)

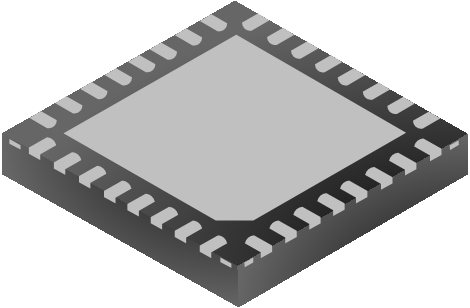

  • Package, QFN-32-5x5x0.85-0.5


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SQ9702 QFN-32-5x5x0.85-0.5 SQ9702 Halogen free Tray
SQ9702TR QFN-32-5x5x0.85-0.5 SQ9702 Halogen free Tape&Reel
