SC7R30 is a heart rate sensor fabricated with CMOS process with supply voltage range from 1.7V to 3.6V.  High precision ADC, automatic calibration circuits, photodiode and a green (525nm) LED are embedded in the module.

One or more test channels can be opened during each measurement, and the test channels are processed sequentially. The lightened LEDs can be programmed for each test channel. The output data for each test channel can be read directly from the registers or from the FIFO.

The wait time between two adjacent measurements can be programmed form 0.167ms to 10ms.


Main feature
  • Supply voltage range:1.7~3.6V

  • Low power

  • High precision : 16bits

  • Programmable LED current : 2.5~100mA

  • Embedded LED

  • Ambient light cancellation

  • Embedded FIFO

  • Package : HLGA-8-3.96x2.36x1.35-0.97


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SC7R30 HLGA-8-3.96x2.36x1.35-0.97 (mm) / Halogen free Tape & Reel

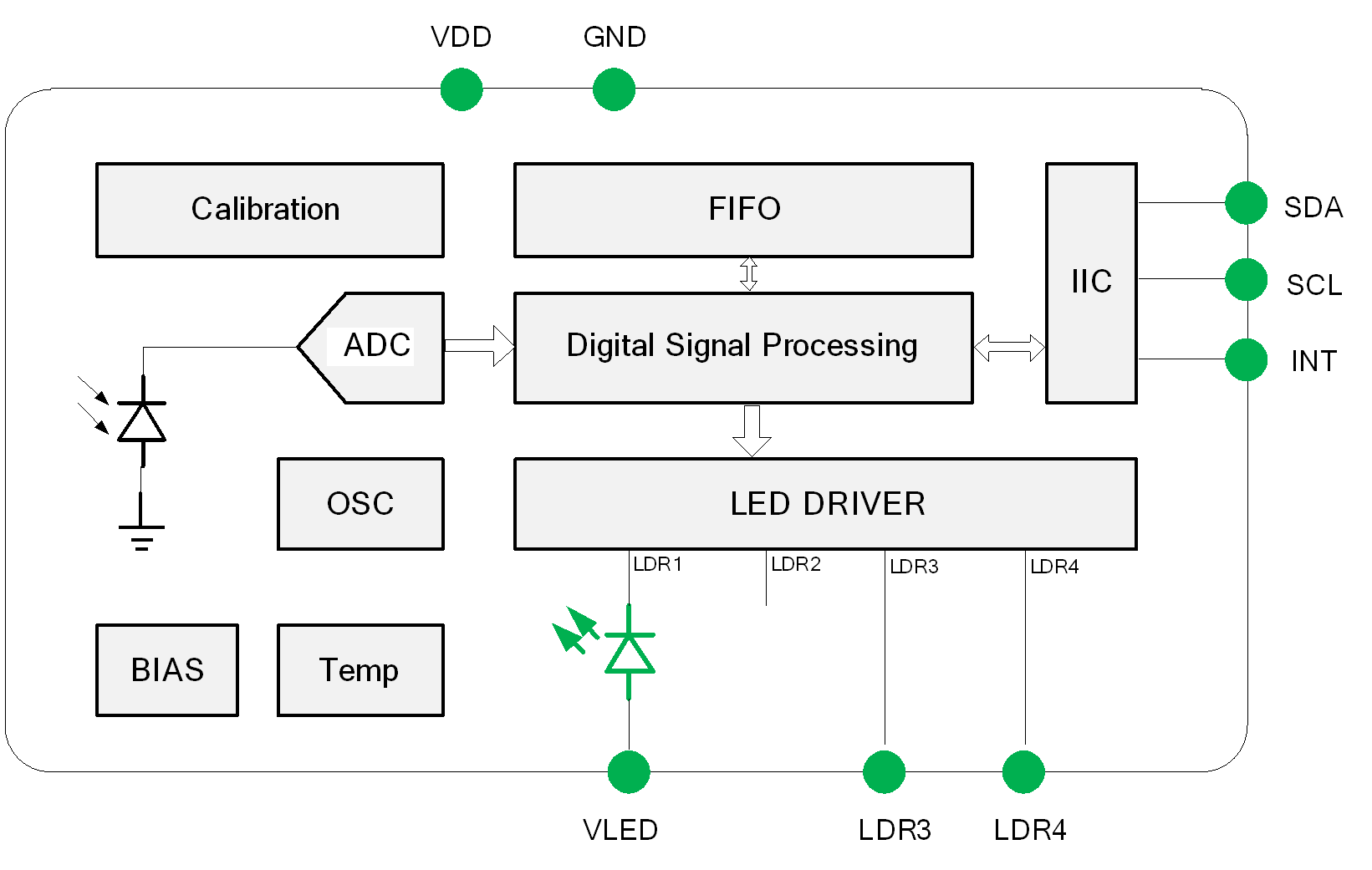

Block Diagram
